Specifications
Width
60 cm
Colour of appliance
stainless steel
Operation mode
Air extraction, air recirculation
Handling
Keys
Remote fan unit (included)
Yes
Can be combined with remote fan units
-
Air output extraction (max normal setting)
514 m³/h
Air output extraction (intensive mode)
953 m³/h
Sound power level extraction (max normal setting)
57 dB
Sound power level extraction (intensive mode)
71 dB
Air output recirculation (max normal setting)
500 m³/h
Air output recirculation (intensive mode)
649 m³/h
Sound power level recirculation (max normal setting)
63 dB
Sound power level recirculation (intensive mode)
69 dB
Performance data for the remote fan unit
-
Power levels
3 electronically controlled power levels and 1 intensive mode
Filter
Metal grease filter, dishwasher-safe
Filter saturation indicator
Yes
Odour filter (available as special accessory)
No
Run-on function
No
Lighting
LED
Light colour
Neutral white
Lamp output
4 W
Illuminance
294 lux
Dimmable light
Yes
Light colour adjustable via Gaggenau Home Connect
No
Backflow flap
Yes
Total connected load
264 W
Connection
With plug, with plug, with plug
Length of connection cable
175 cm
Gaggenau Home Connect
No
Energy efficiency class
A
Annual energy consumption
40.3 kWh/annum
Ventilation efficiency class
A
Grease filter efficiency class
B
Illumination efficiency class
A
1 / 0
Power levels
3 electronically controlled power levels and 1 intensive mode
Filter
Metal grease filter, dishwasher-safe
Filter saturation indicator
Yes
Odour filter (available as special accessory)
No
Run-on function
No
Lighting
LED
Light colour
Neutral white
Lamp output
4 W
Illuminance
294 lux
Dimmable light
Yes
Light colour adjustable via Gaggenau Home Connect
No
Backflow flap
Yes
Total connected load
264 W
Connection
With plug, with plug, with plug
Length of connection cable
175 cm

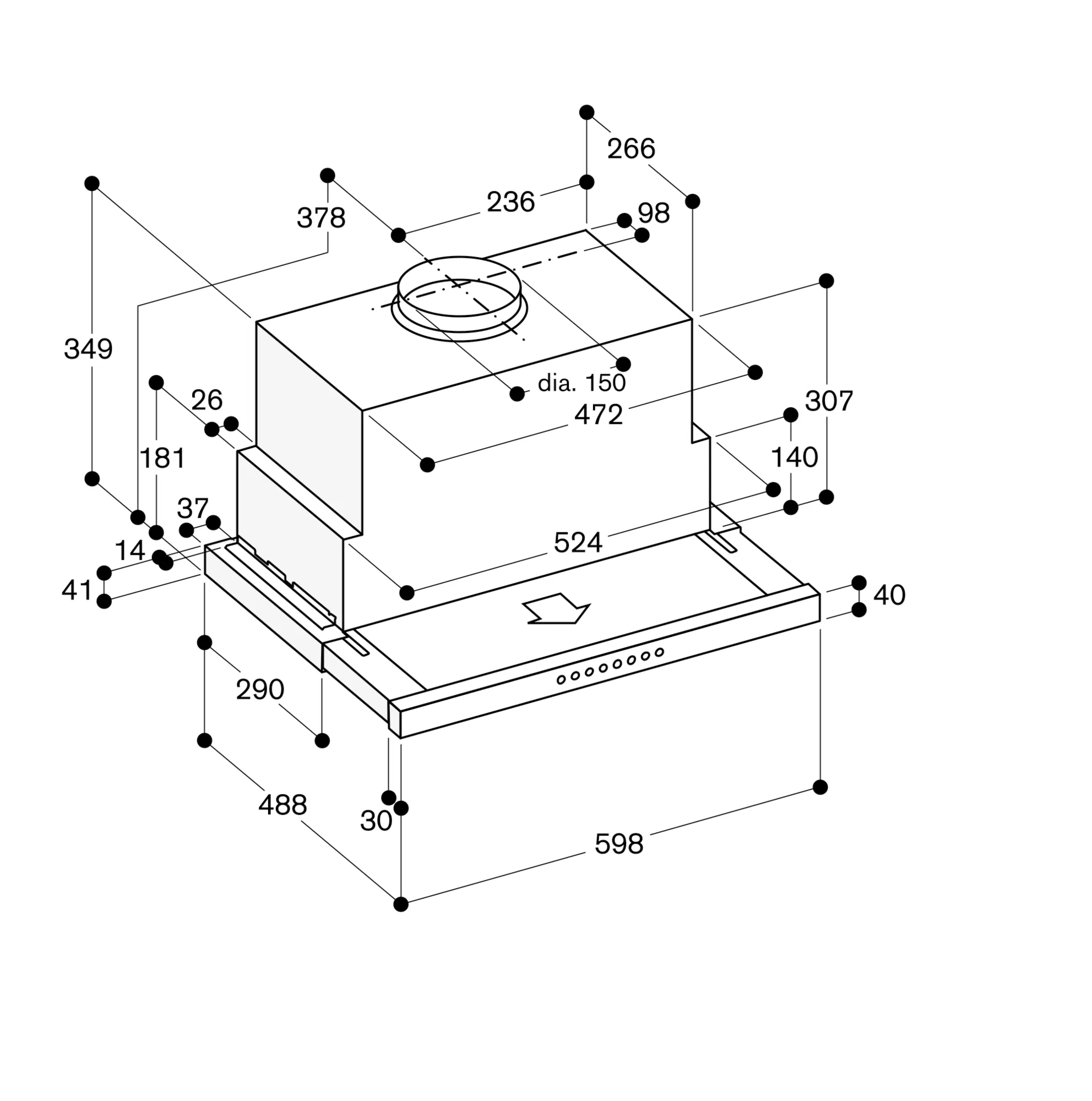

Dimensions (HxWxD)
378x598x320 mm
Appliance weight
13.0 kg
Minimum distance above electric cooktops
430 mm
Minimum distance above gas cooktops
650 mm
