Specifications
Extendable table ventilation, when not in use can be completely lowered into the worktop.
Can be combined perfectly with all Vario cooktops 400 series
Dimmable, neutral white surface LED light for ideal illumination of the cooktop
Precision crafted 3 mm stainless steel.
For surface mounting with a visible edge or for flush mounting.
Motorless, can be combined with Gaggenau BLDC remote fan units
Power levels depend on the remote fan unit.
3 electronically controlled power levels and 1 intensive mode.
Interval ventilation, 6 min.
Run-on function, 6 min.
Grease filter saturation indicator.
2 large-scale metal grease filters included, easy to remove and dishwasher-safe.
Grease drip trays, easy to remove and dishwasher-safe.
Neutral white surface LED light (3600 K), continuously dimmable.
Lamp output 2 x 10 W.
Illuminance 400 lx.

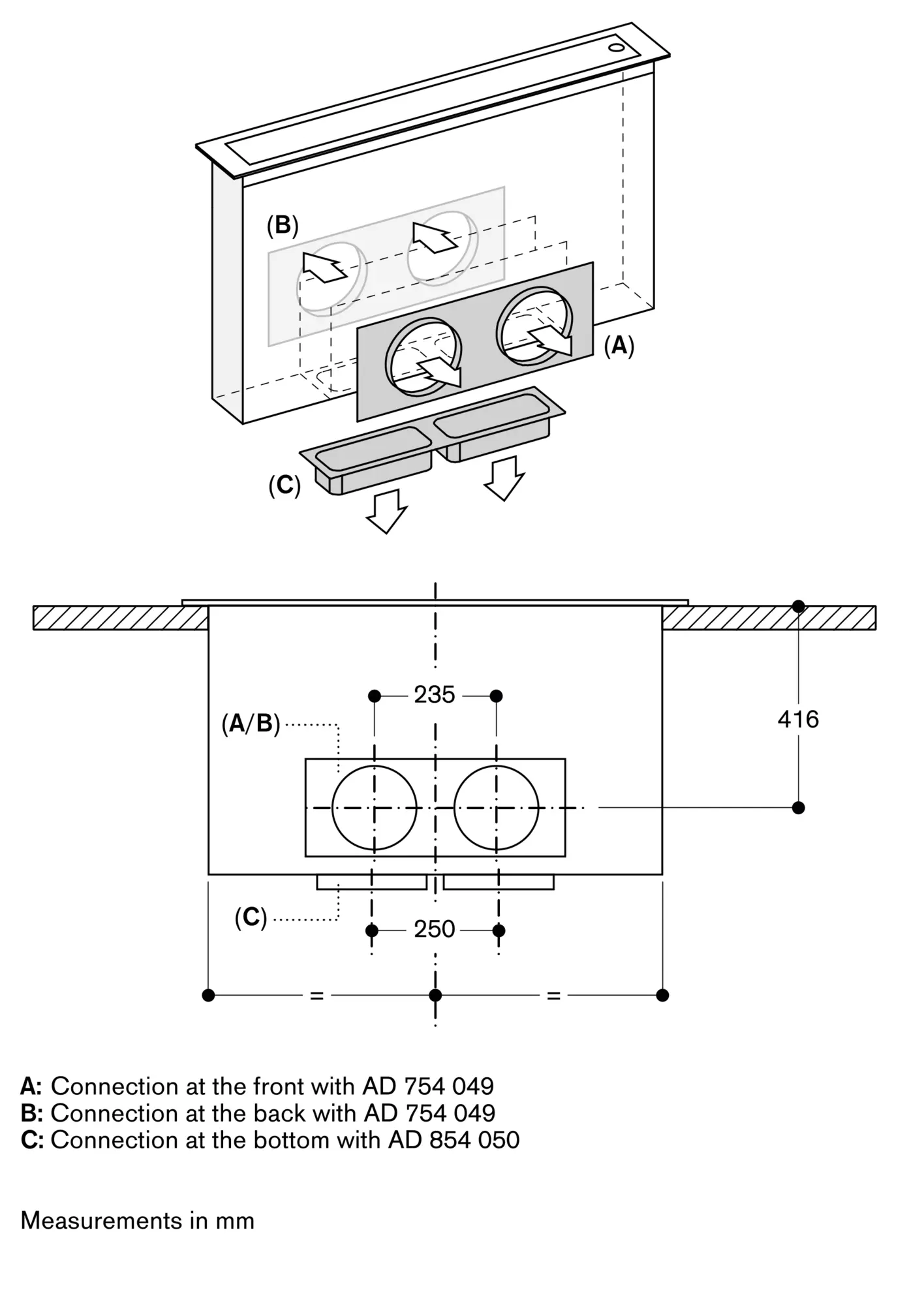

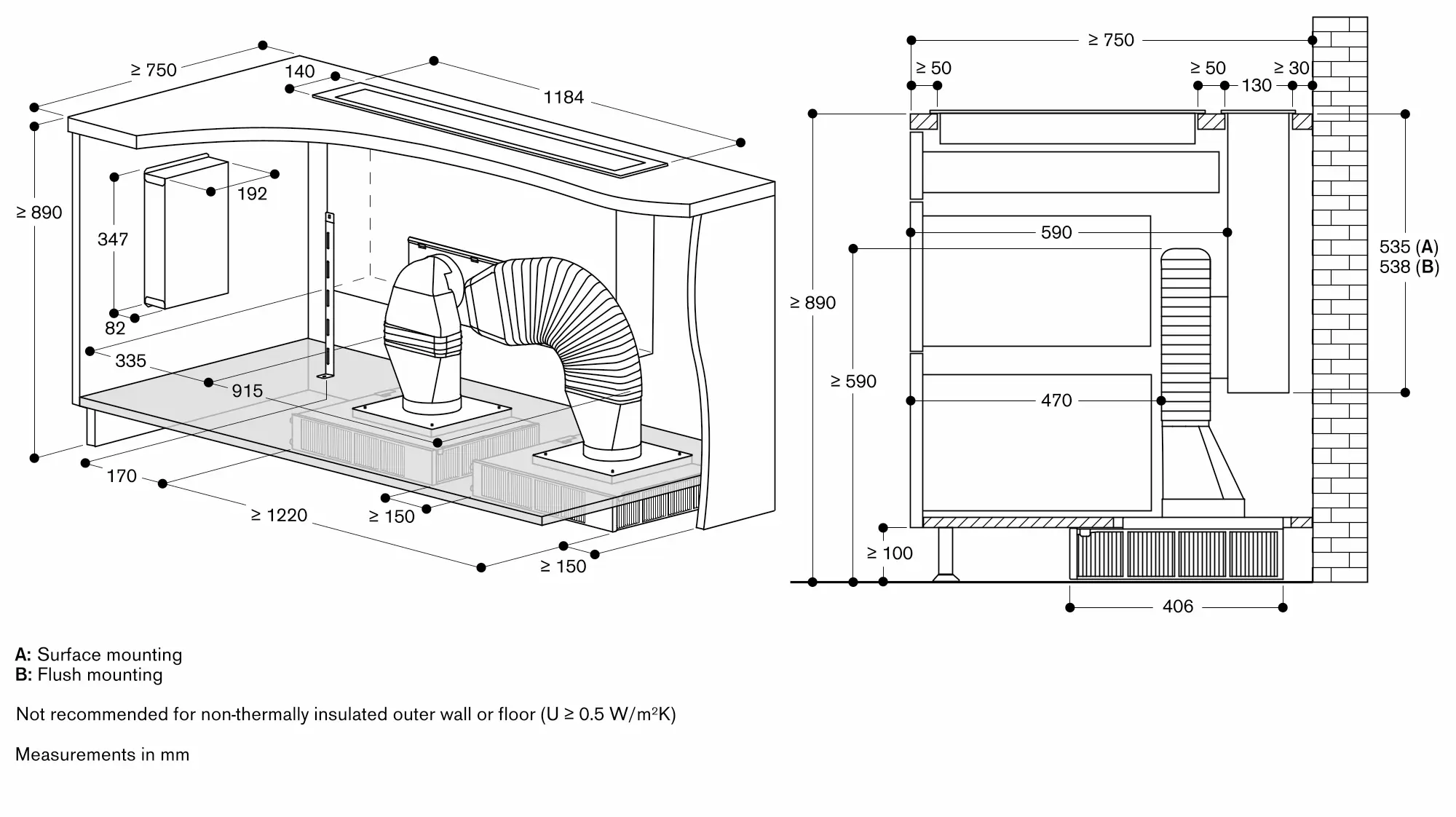

Flexible connection options to the remote fan unit: at the bottom, at the front or at the back.
In all the options, it is possible to have space for drawers in front of the table ventilation.

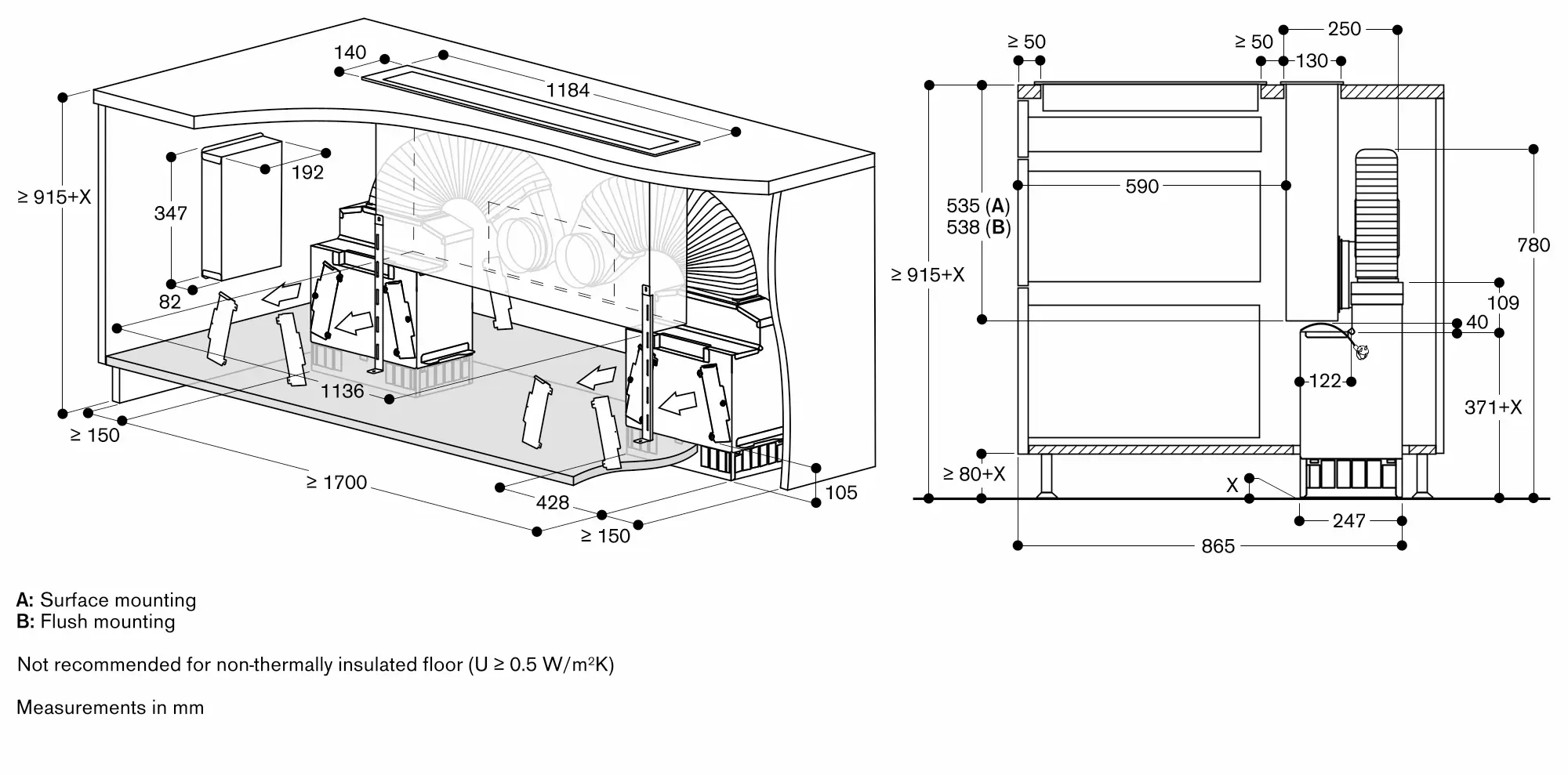

The table ventilation is recommended only in recirculation mode for EU countries, the consumption data is not mandatory in this mode.
The equivalent ducting length to ensure good performance is Lmax 19 m.
Combinable with all cooktops Vario 400 series and 400 series.
Maximum cooktops width: 120 cm.
It is recommended to use two remote fan units so that sufficient vapour captation will be ensured.

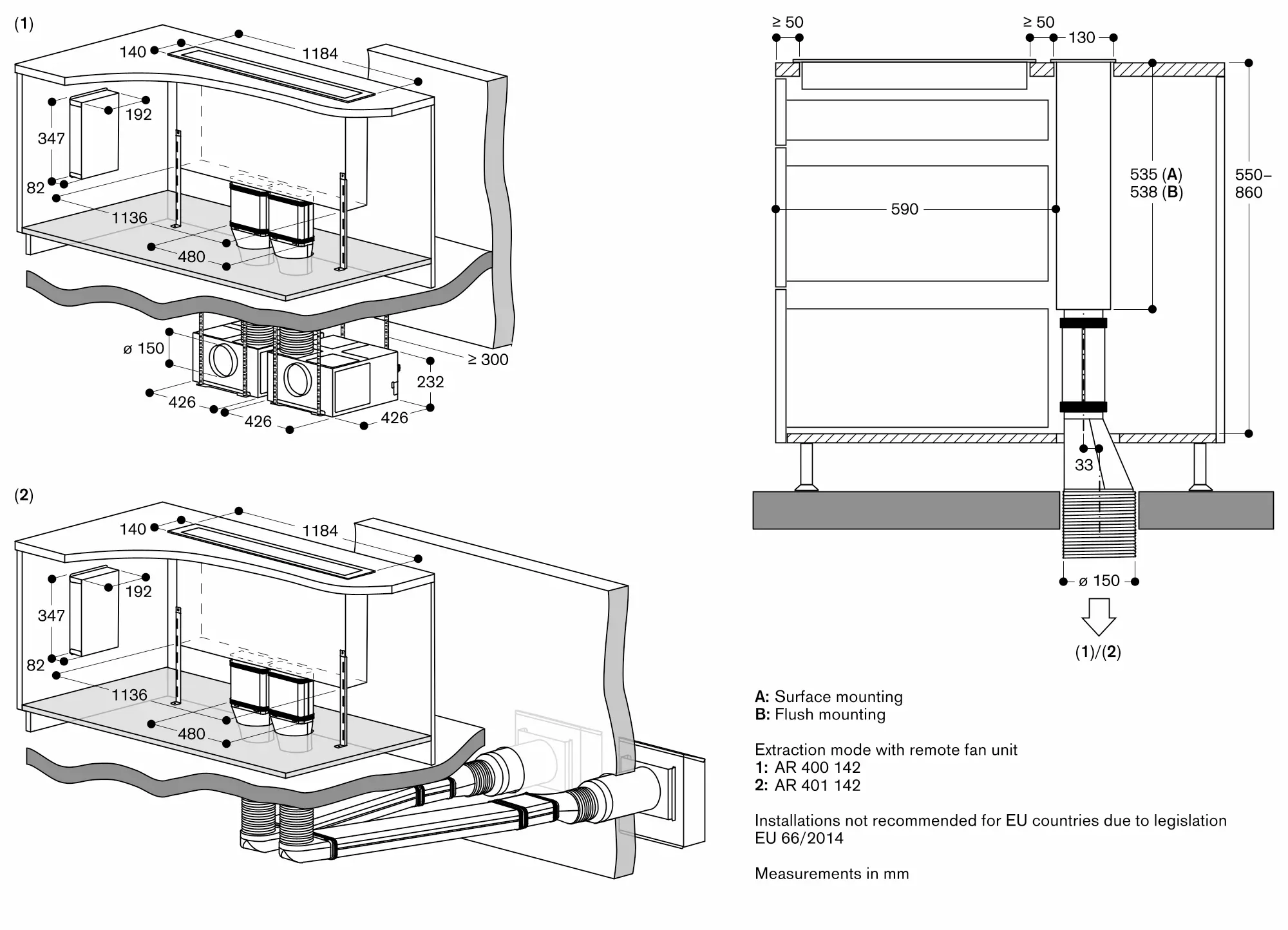

In EU countries due to legislation EU 66/2014 only air recirculation is recommended.
Depending on the type of installation, the corresponding accessories must be ordered separately.
Air recirculation is not recommended in combination with Vario electric grill.
For optimum performance in air recirculation we recommend an outflow surface area of at least 800 cm². 400 cm² for each remote fan unit.
Operation of Vario cooking appliances only possible without appliance cover.
Max. output of cooktops 18 kW.

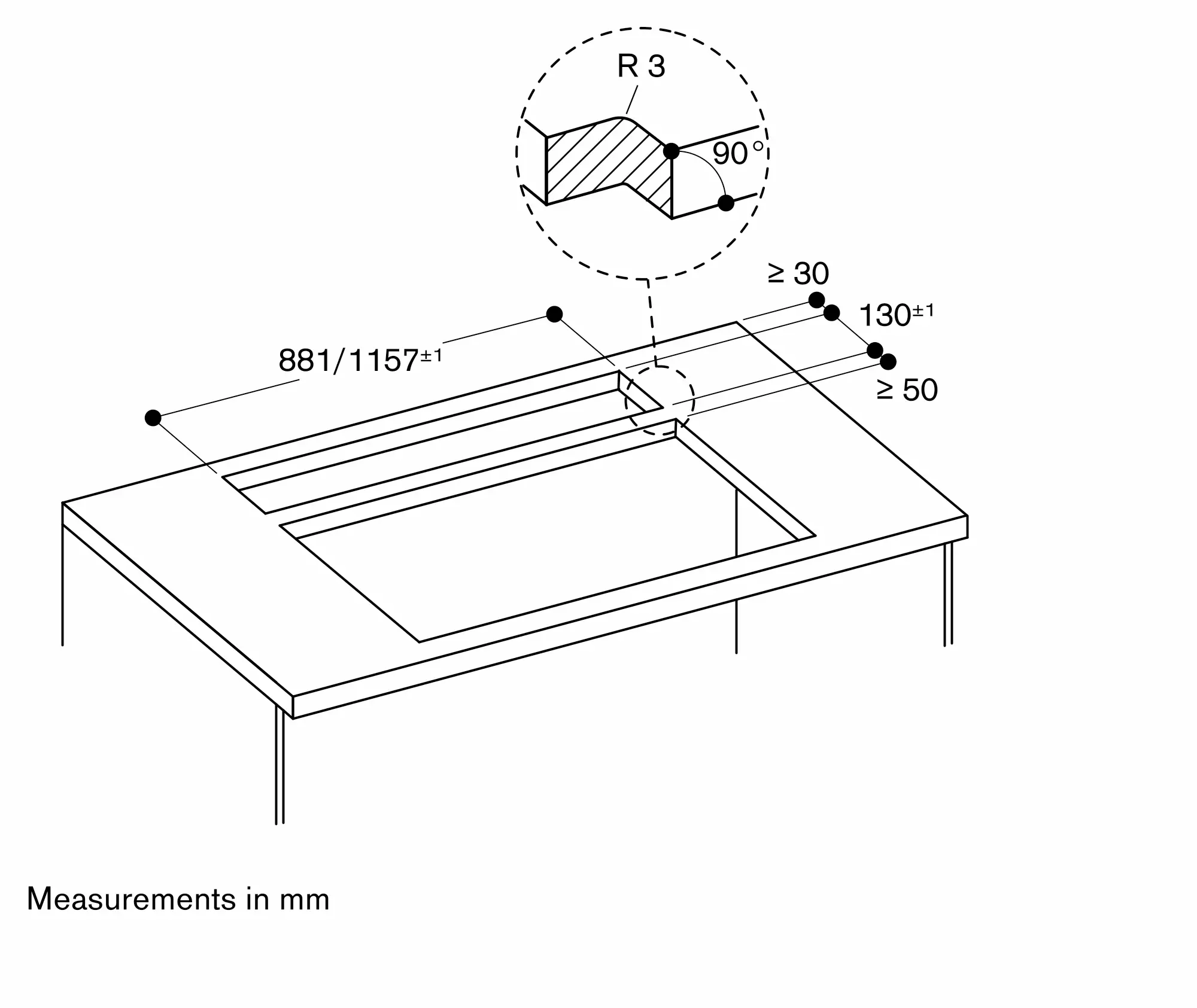

The table ventilation must have its own worktop cut-out.
The bearing capacity and stability, in the case of thinner worktops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.

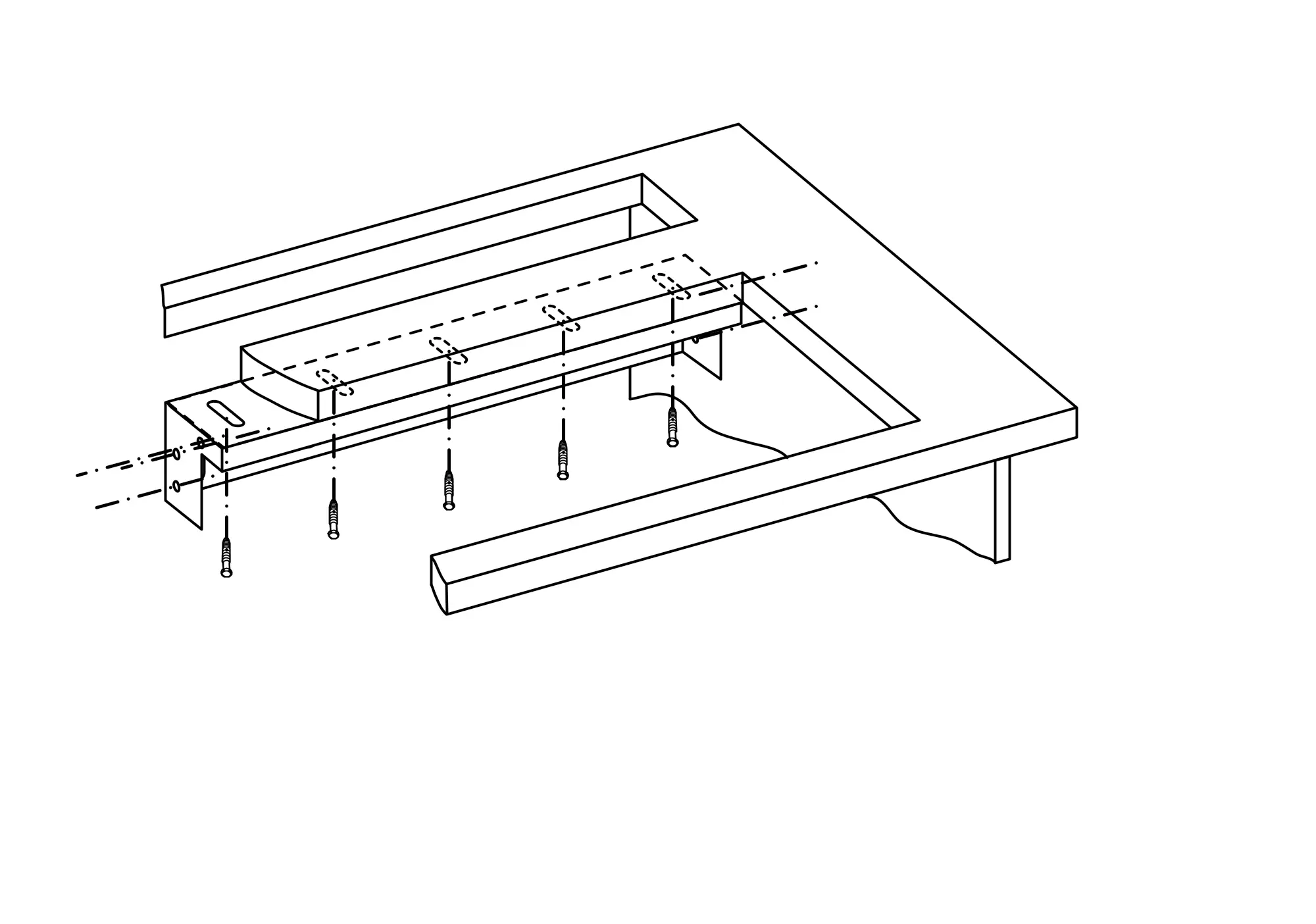

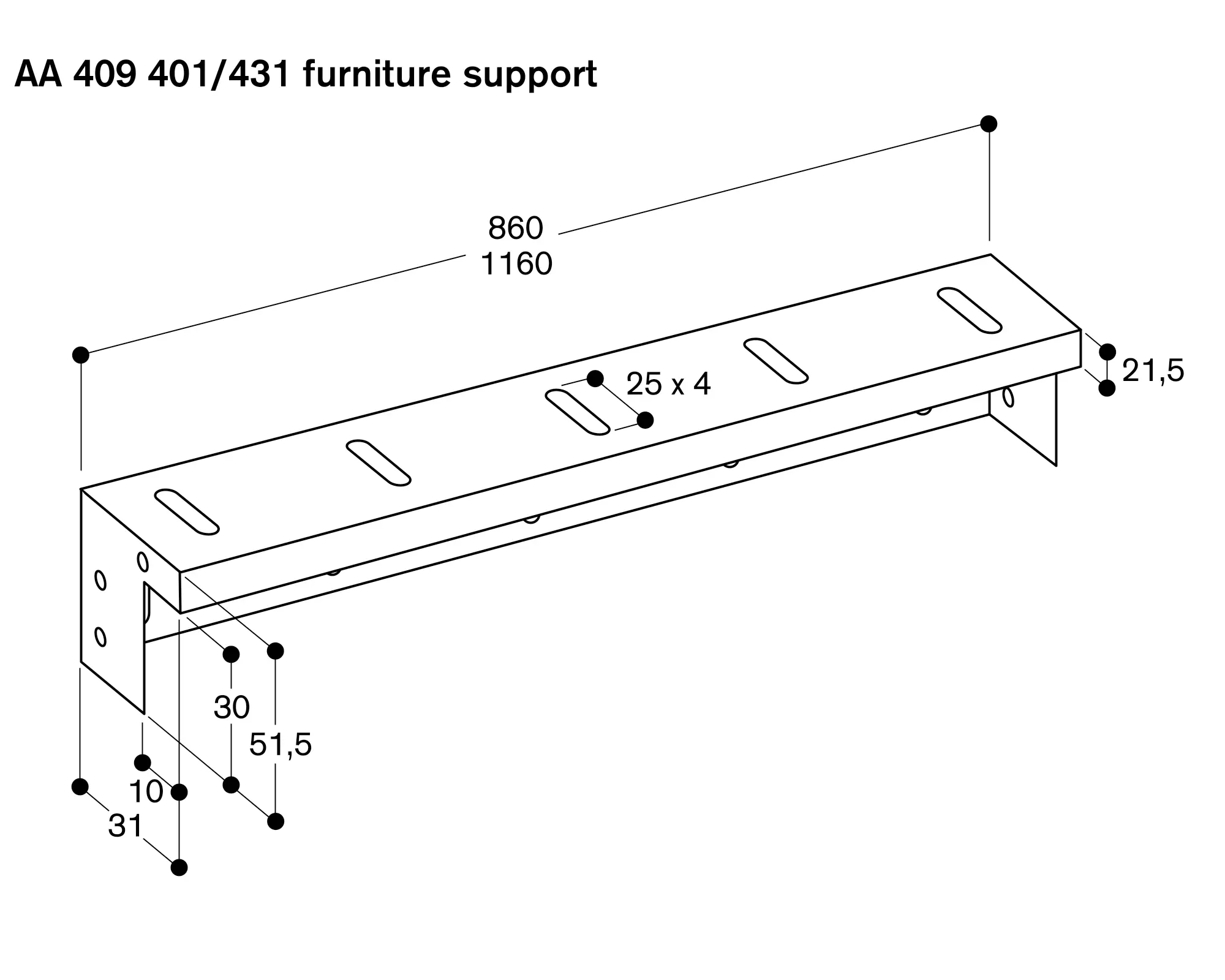

The remaining surface of the worktop (min. 50 mm) between the cut-outs must be reinforced with a support. It is recommended to use furniture support AA 409 401/431.

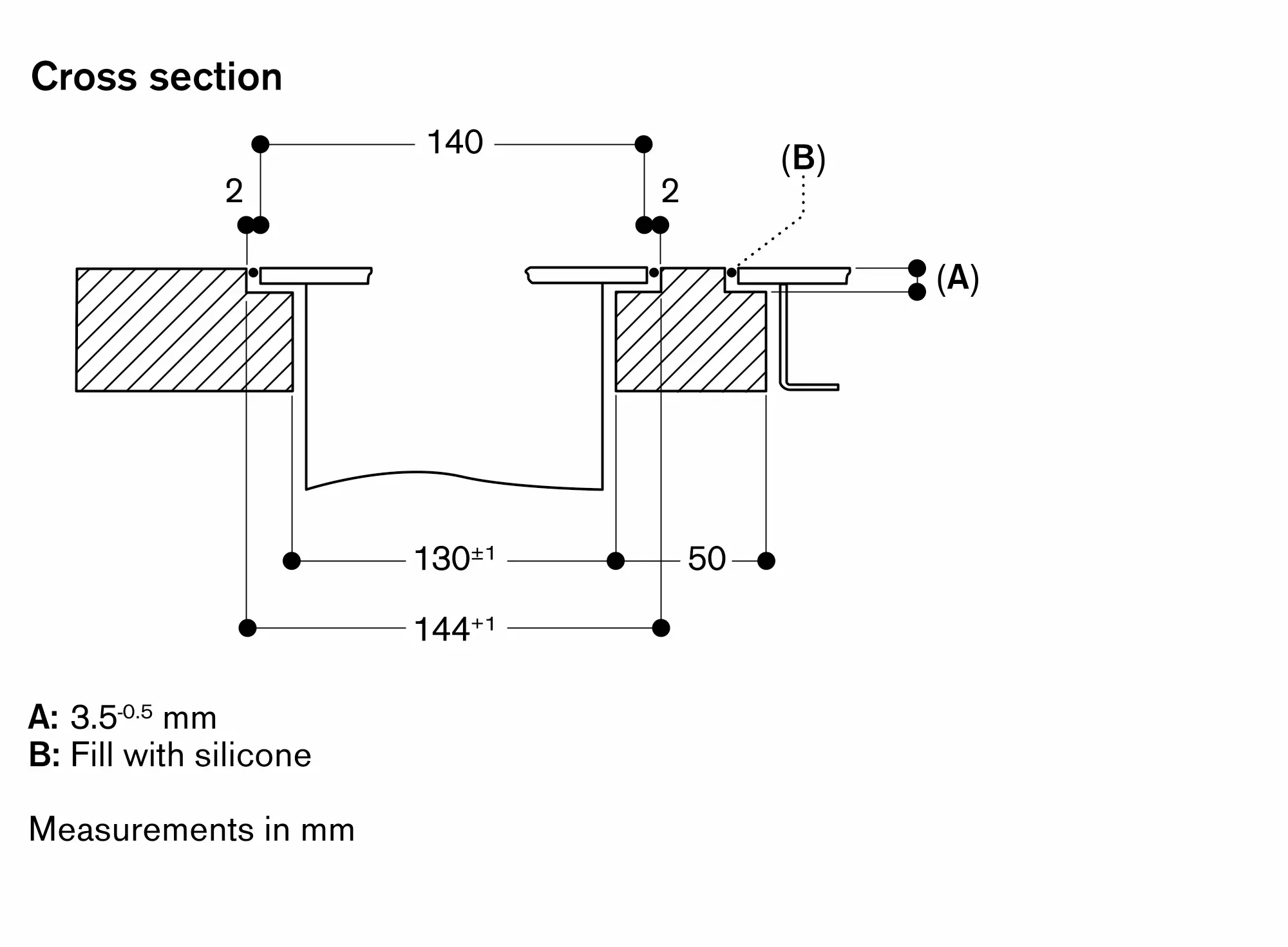

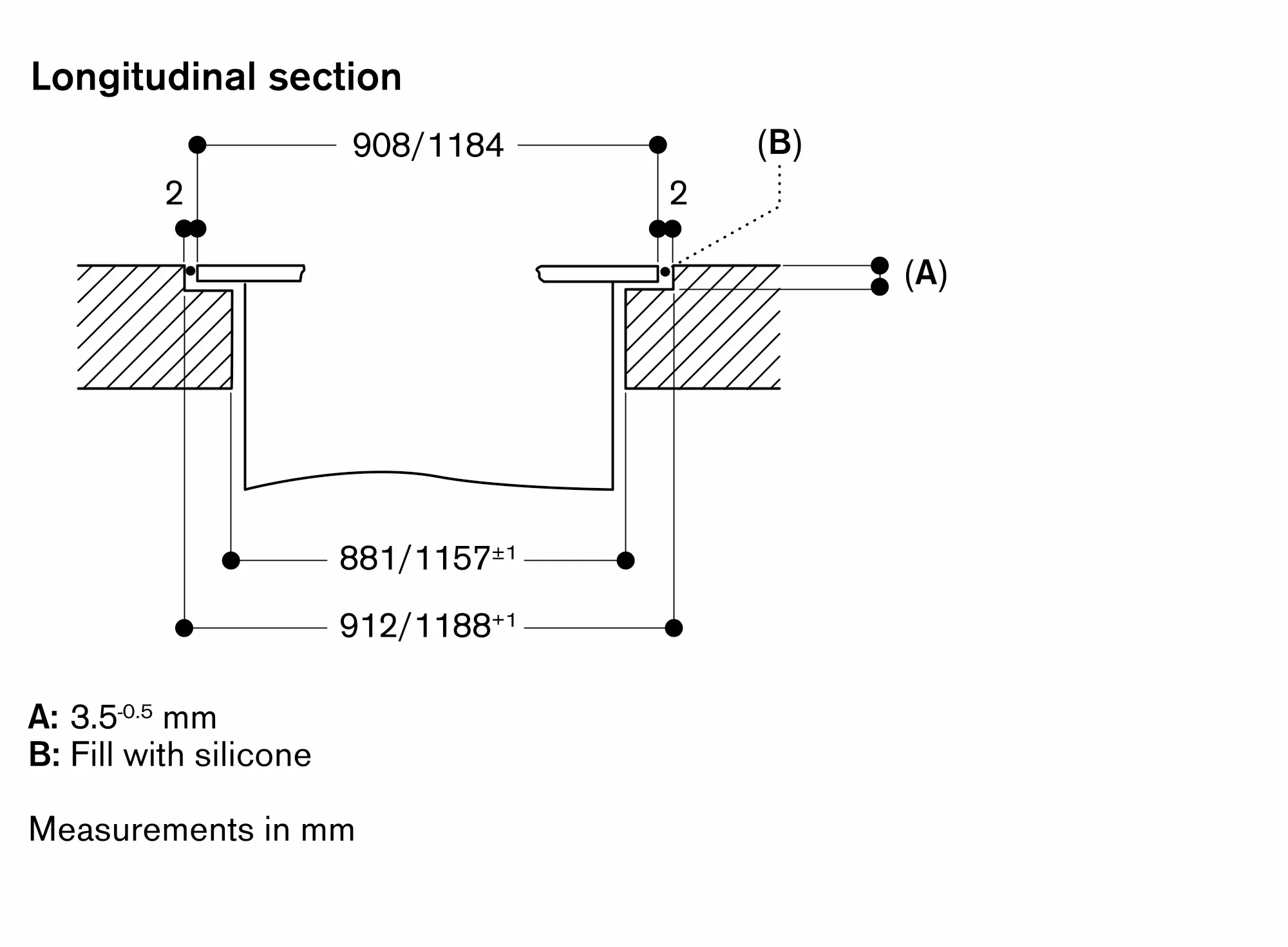

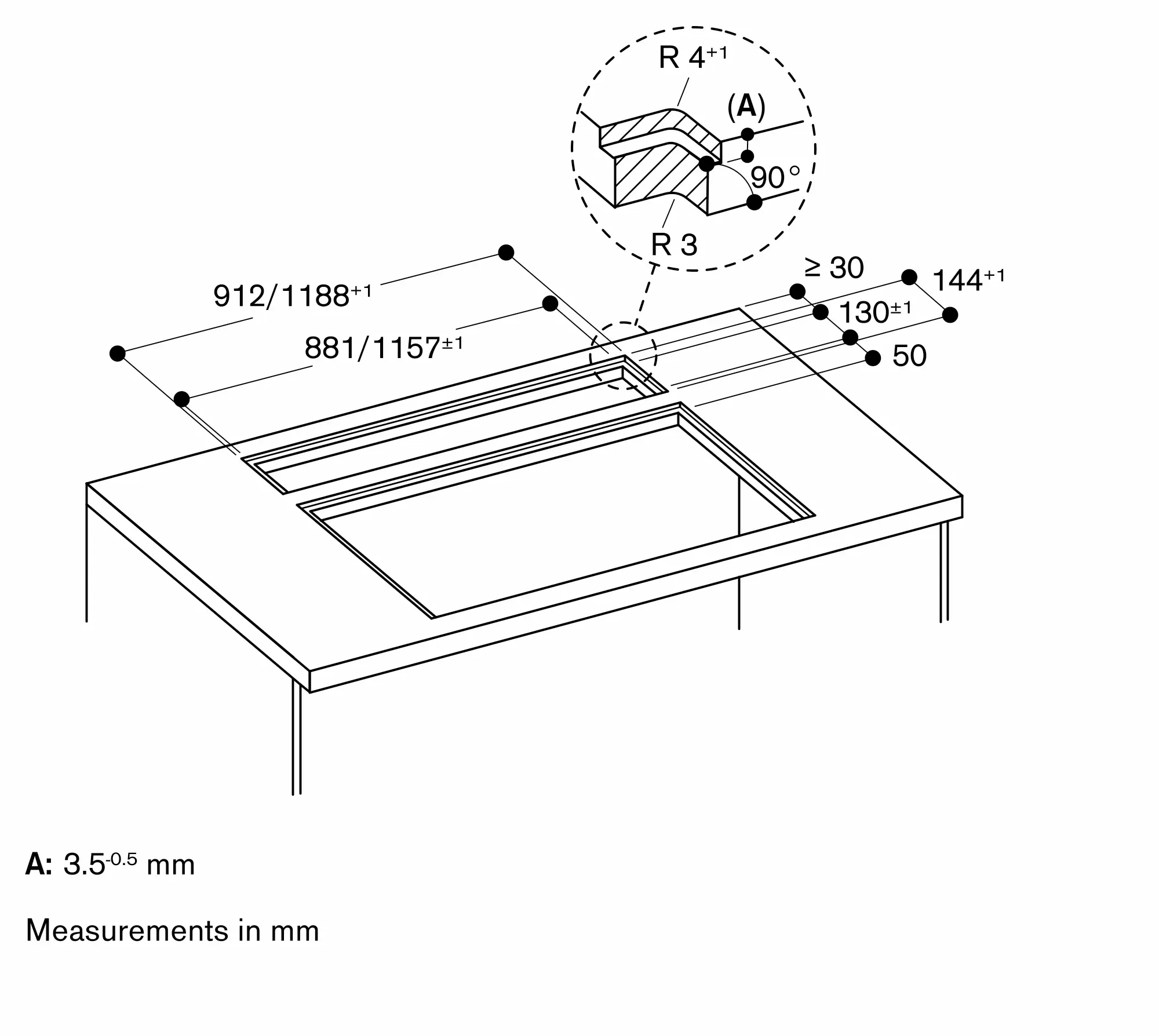

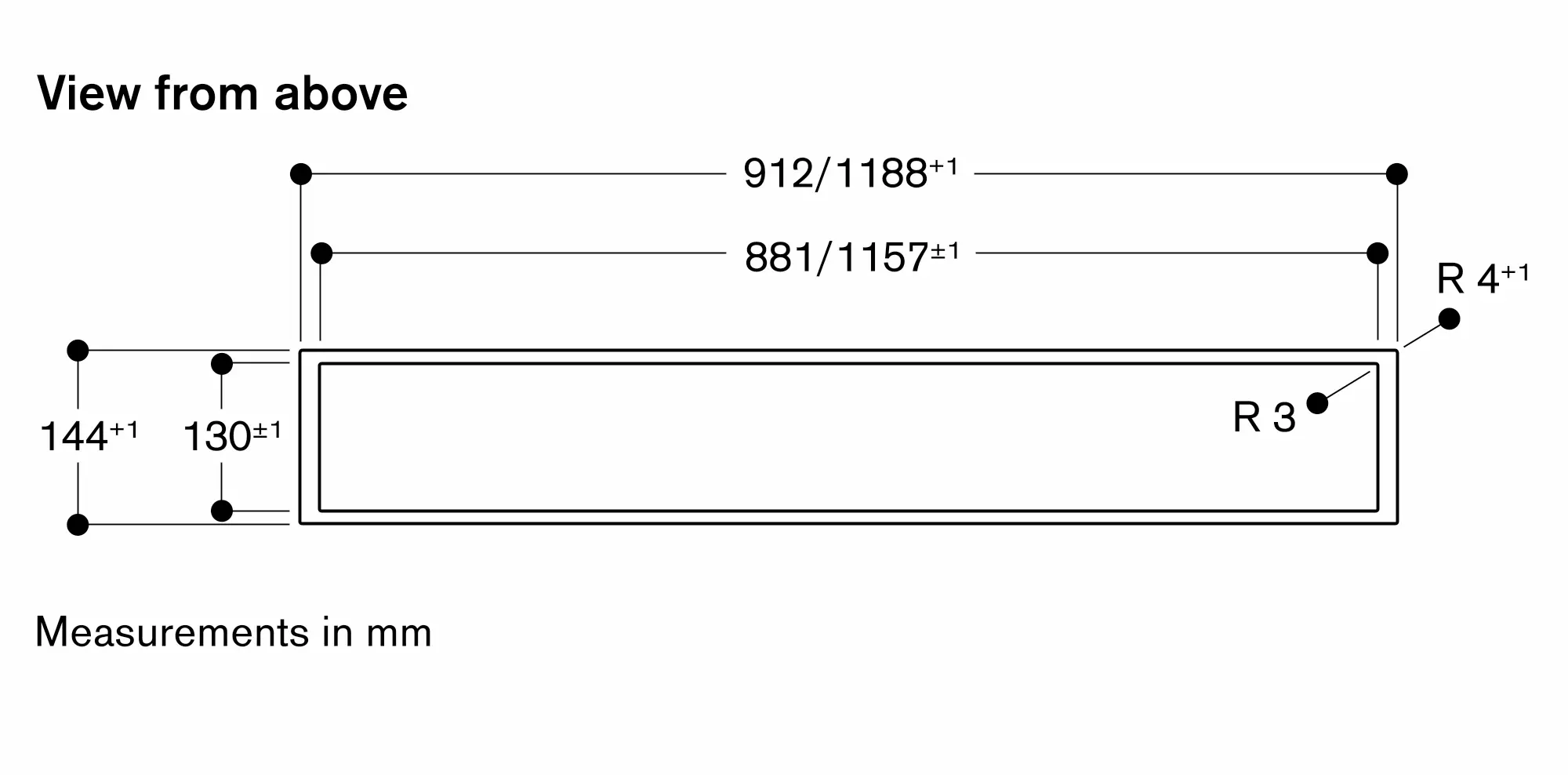

Additional instructions for flush mounting:
Installation is possible in worktops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the cut edges must be observed. Concerning other materials please consult the worktop manufacturer.

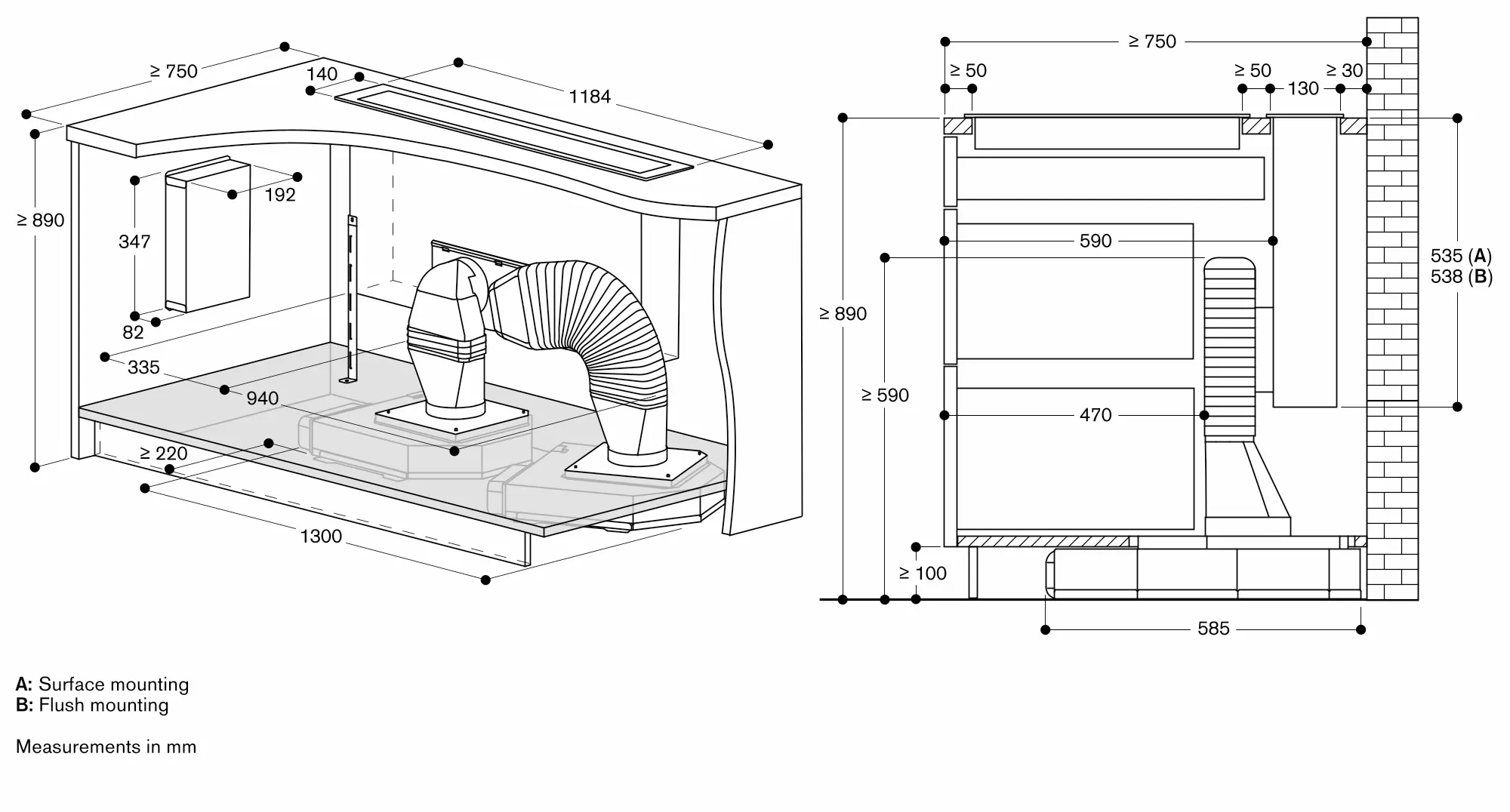

Depending on the type of installation, ovens can be combined with the table ventilation.
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
The control unit should be accessible and be secured to a panel of the cabinet that avoids any risk of flooding.
Total connected load 65 W.
Connecting cable 1.7 m with plug.
Network cable 1.2 m.
