200 series Dishwasher 60 cm Variable hinge for special installation situations
DF270101F

1 / 0
Photo Nr. 1 of the product DF270101F
Photo Nr. 2 of the product DF270101F
Photo Nr. 3 of the product DF270101F
Photo Nr. 4 of the product DF270101F
Photo Nr. 5 of the product DF270101F
Photo Nr. 6 of the product DF270101F
Photo Nr. 7 of the product DF270101F
Photo Nr. 8 of the product DF270101F
Photo Nr. 9 of the product DF270101F
Photo Nr. 10 of the product DF270101F

200 series Dishwasher 60 cm Variable hinge for special installation situations
DF270101F

Find a local Dealer
Find a local dealer in your vicinity

200 series Dishwasher 60 cm Variable hinge for special installation situations
DF270101F

Find a local Dealer
Find a local dealer in your vicinity

Specifications

Optimal protection for sensitive glassware by low temperature drying with zeolite, elaborated basket design and intelligent water softening.
6 programmes with aqua sensor and 3 options, such as Power for cleaning and drying dishes from 57 minutes and Intensive for particularly thorough cleaning in the lower basket.
Flexible basket system with smooth running rails on all levels.
Bright interior lighting.
Push-to-open function for perfect integration into handleless furniture fronts.
Flexible hinge for reduced plinth height as of 50 mm or tall unit installation.
Lateral Info-Light.
Very quiet: 43 dB.
TFT display indicating remaining or end time, refill for salt and rinsing agent, inflow of water.
Touch key operation.
Flexible cycle time reduction, even during an active cycle.
Personalisation function for saving individual combinations of programmes.
Drying assistant for optional door opening at the end of the programme.
Information key with use indicators.
Time delay up to 24 hours.
Visual and acoustic end of programme indicator.
Lateral Info-Light.
Bright interior lighting.
Glass protection with zeolite.
Aqua sensor.
Load sensor.
Detergent recognition.
Regeneration electronics.
Heat exchanger.
Continuous flow heater.
Triple filter system.
Soft lock.
Aqua stop.
Downloadable programmes.
Programme assistant.
Temporary noise reduction.
Software updates.
Home network integration for digital services (Home Connect) wireless via WiFi.
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
6 programmes:
Auto 35 °C - 45 °C.
Auto 45 °C - 65 °C.
Auto 65 °C - 75 °C.
Eco 50 °C.
Quick wash 45 °C (35 min.).
Personalisation function (default setting: Pre-rinse).
3 options:
Intensive.
Power.
Half Load.
Machine Care.
Flexible basket system with smooth running rails on all levels.
Upper basket:
Over extension.
Optional extra cleaning area by activating additional spray nozzles.
Rackmatic with 3 levels, adjustable in height up to 5 cm.
6 folding spines.
4 folding racks for optimal protection of glass.
Lower basket:
8 folding spines.
2 folding racks for optimal protection of glass.
Dividable glass support.
Cutlery basket.
Maximum dish sizes (upper/lower basket)
27/25, 24.5/27.5 or 22/31 cm respectively.
12 place setting capacity.
Maximum glass loading capacity 23 wine glasses.
Energy efficiency class B at a range of energy efficiency classes from A to G.
From 9.5 l water.
From 0.626 kWh.
Noise level 43 dB (re 1 pW).
Height-adjustable feet.

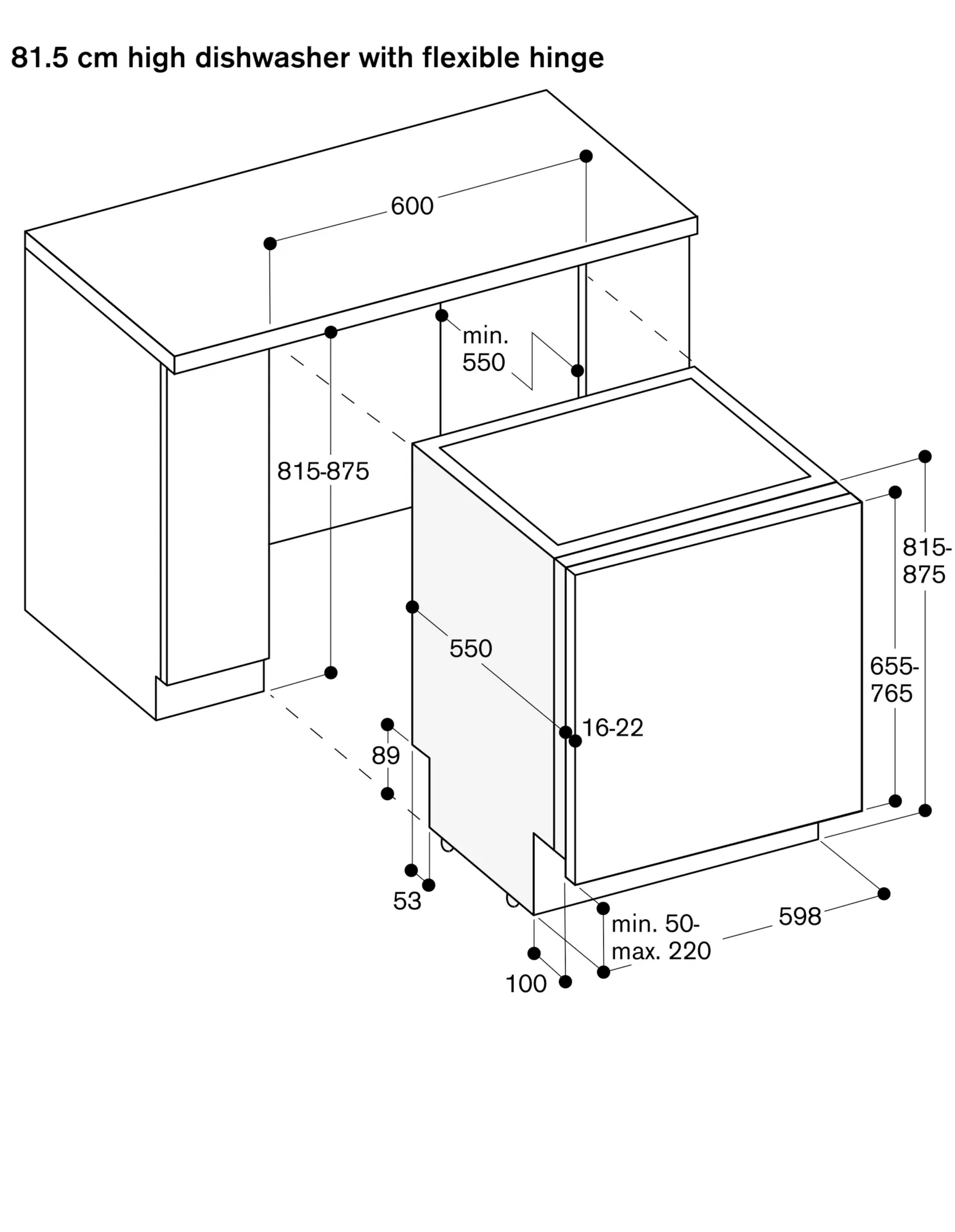

Appliance plinth recess 100 mm (see drawing).
Rear feet adjustable at front.
Door weight up to 11 kg.
Door panel dimension dependent on plinth height of kitchen furniture.
Installation and usage also with furniture handle possible. The push-to-open function remains active.
Total connected load 2.0 KW - 2.4 KW.
Connecting cable pluggable.

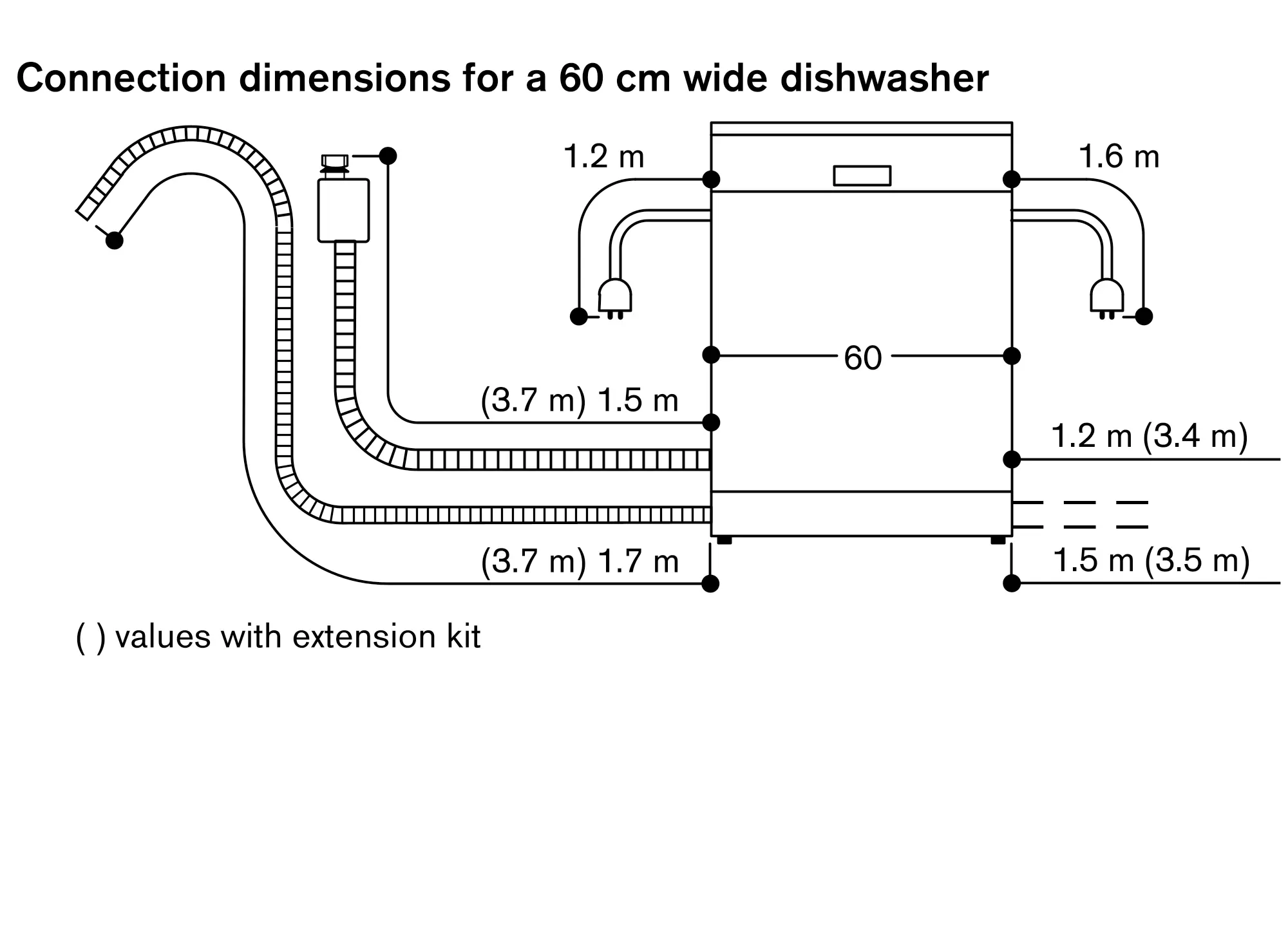

Water connection with 3/4" screw joint.
Connection to hot or cold water possible.
Power consumption standby/network 2.0 W.
Time auto-standby/network 2 min.
Left-on-mode duration 0 min.
Please check the user manual for how to switch off the WiFi module.
