Powerful remote fan unit to combine with Vario downdraft ventilation and table ventilation AL 400 122

Efficient BLDC technology

Particularly quiet due to patented noise insulation

Compact, space-saving installation in the cabinet for Vario downdraft ventilation

3 performance output levels and intensive mode:

Air output according to EN 61591.

Sound power and sound pressure depending on built-in situation.

Air recirculation:

500 CFM

Power levels depend on the ventilation system.

3 electronically controlled power levels and 1 intensive mode.

Fan technology with highly efficient, brushless DC motor (BLDC).

Including sound insulation to minimise the noise level.

Steel housing, zinc-plated.

Pipe connection piece on intake side: 1 x DN 150 flat duct.

Retaining bracket for installation at the furniture base enclosed.

2 regenerable activated charcoal filters enclosed ex factory.

Extended change intervall of the activated charcoal filter: regenerable up to 30 times.

Regenerable in the oven at 200 °C.

Remote fan unit to combine with Vario downdraft ventilation and table ventilation AL 400 122.

Connection to the respective appliances via network cable.

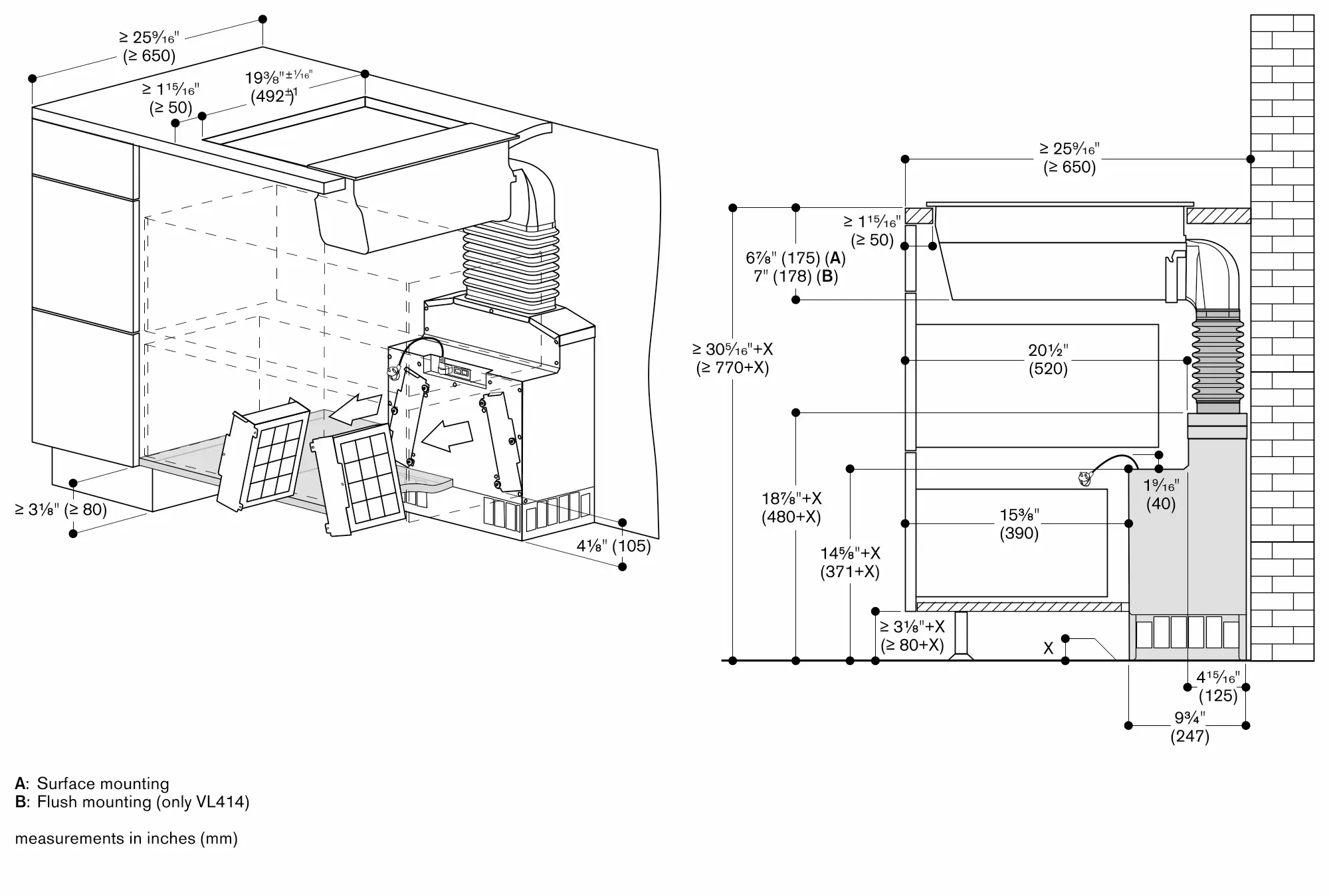

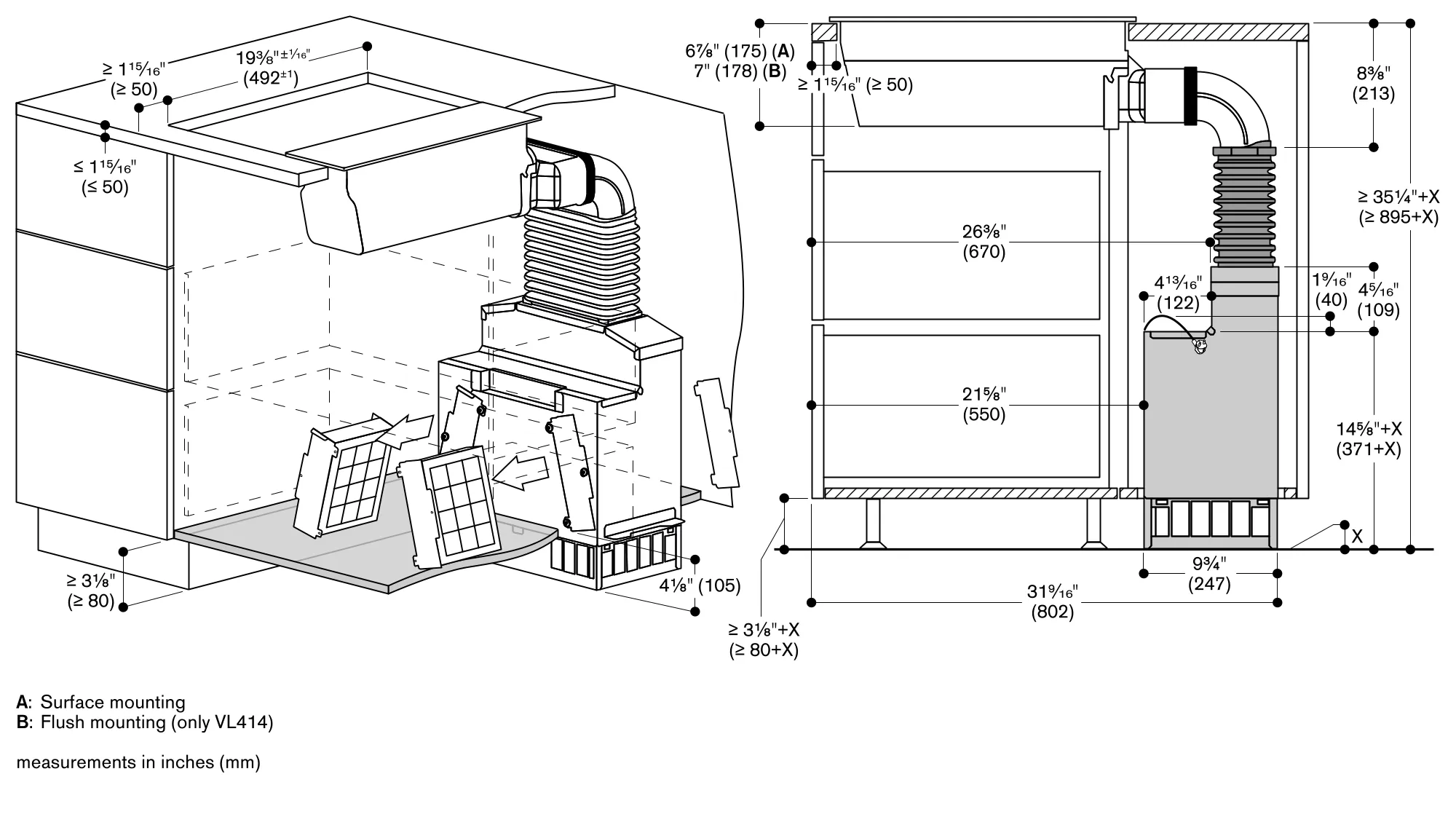

Installation in a cupboard possible with a cut-out in the furniture base or behind the cupboard positioned on the floor. Please refer to the planning information on page XX.

To replace the filter the remote fan unit must be accessible.

The activated charcoal filter exchange is possible from both sides.

Total rating: 65 W.

Total Amps: 10 A.

120 V / 60 Hz.

Connecting cable 1.8 m, pluggable.
