400 series microwave drawer 24'' stainless steel
MW420621

Find a local Dealer

Technical Overview

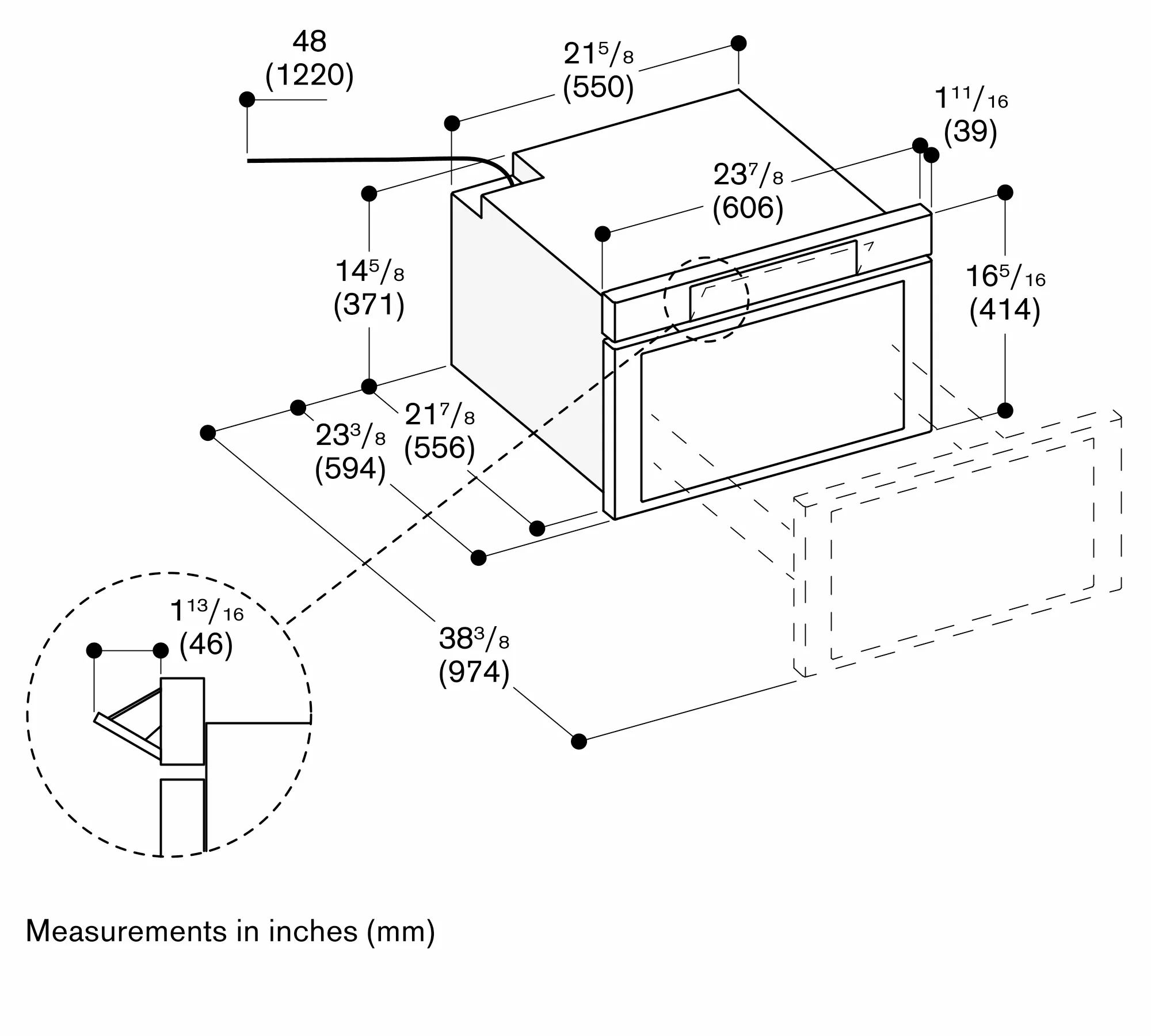

Overall Appliance Dimensions (HxWxD) (in)
16 5/16'' x 23 7/8'' x 23 3/8''
Dimensions (HxWxD)
414x606x594 mm
Required Cutout Size (HxWxD) (in)
14 13/16'' x 22 1/8'' x 23 1/2''
Required cutout size (HxWxD)
376-376 x 562-562 x 597 mm

Special Features

Built-in microwave drawer, perfect for kitchen islands, under counter and wall applications
Flush installation
Sensor cooking mode for easy cooking.
950 W microwave power
Net volume 1.2 cu. ft. (34l)

Specifications

Built-in microwave drawer, perfect for kitchen islands, under counter and wall applications
Flush installation
Sensor cooking mode for easy cooking.
950 W microwave power
Net volume 1.2 cu. ft. (34l)
Quick defrost program.
Sensor reheat program. Popcorn sensor cooking. Kitchen timer.
Maximum microwave output power 950 W.
Glass touch control panel and an interactive visual display.
Digital display with scrolling text.
Interior capacity accommodates 9" x 13" pans and cups up to 7" in height or 20 oz.
Open interior dimensions:
Width 17 5/16'' x Height 7 1/8'' x Depth 16 9/16''
Adjustable cooking time up to 99 minutes and 99 seconds.
Keep warm setting allows food to be kept warm for up to 30 minutes.
Sensor cooking mode controls humidity and automatically adjusts cooking level and cooking time for various foods and quantities.
Remote control and monitoring.
Child lock.

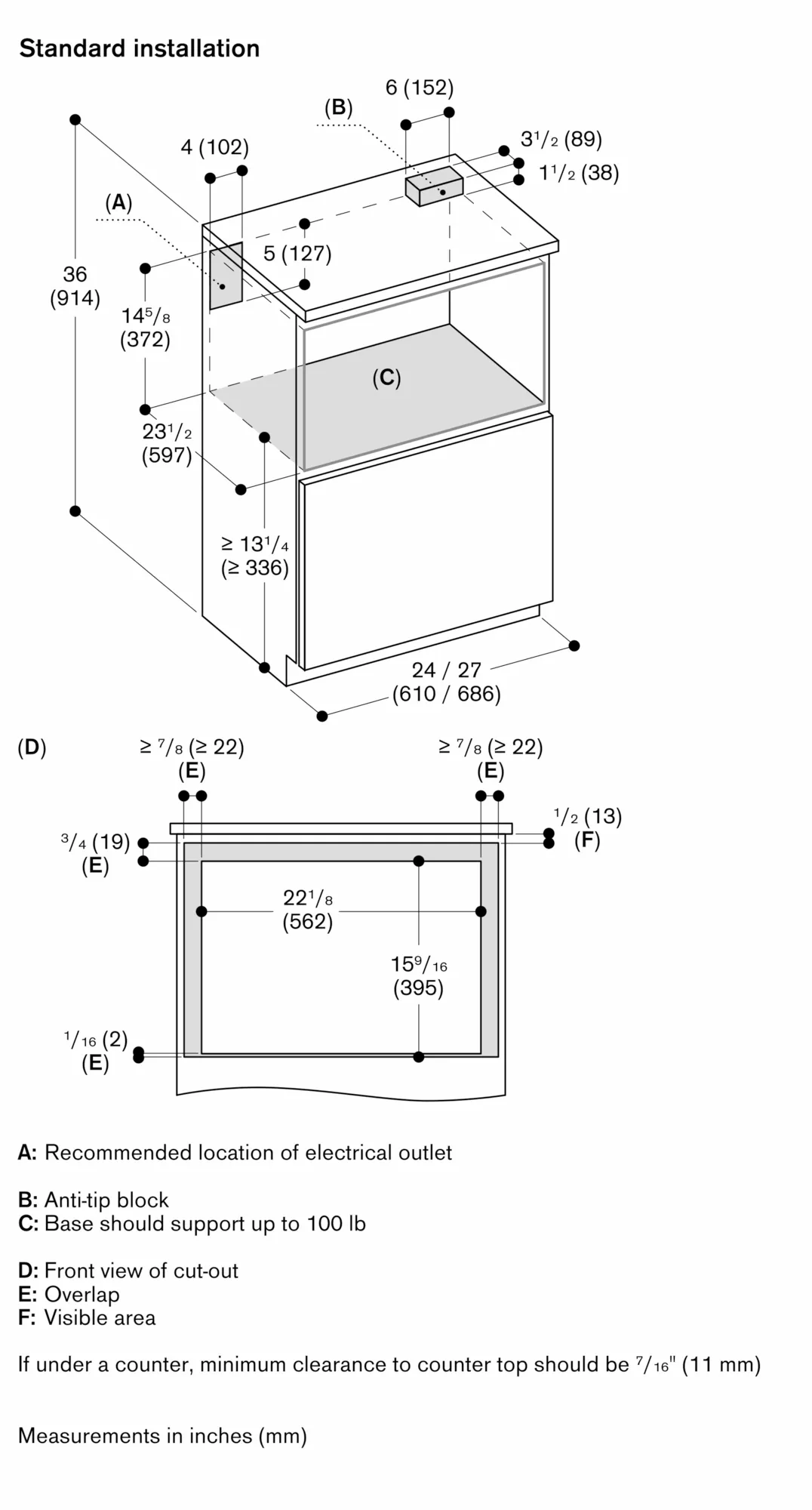

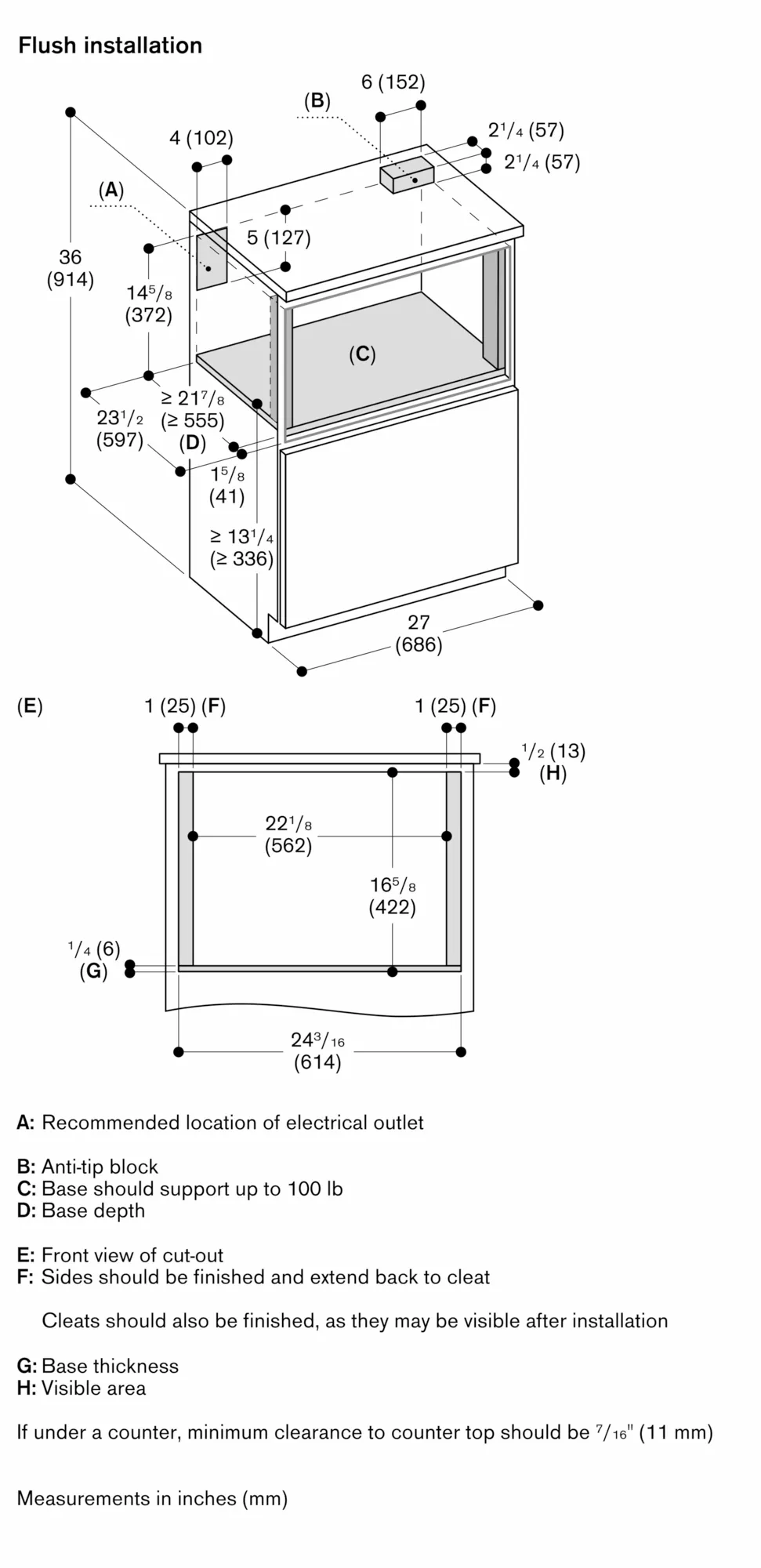

The built-in microwave drawer can be installed using a standard or flush installation.
Cabinet base support requirements: 100 pounds. Microwave drawer can be installed below a cooktop but requires a clearance of at least 2".
Appliance dimensions:
Width23 7/8'' x Heigth 16 5/16'' x Depth 23 3/8''
Total rating 1.5 KW.
Total Amps: 15 A.
120 V / 60 Hz.
Connecting cable 48'' with plug.
