AR401142

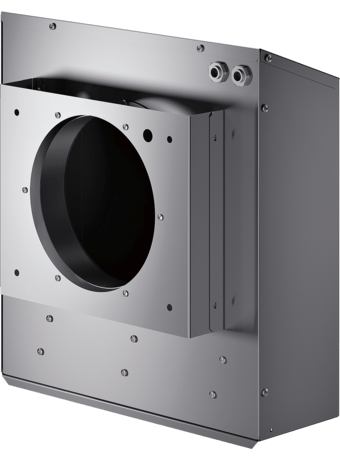

Remote fan unit 400 series

AR 401 142

Stainless steel
Max. air output 910 m³/h
Air extraction

Zoom

Main facts

  • Powerful remote fan unit to combine with motorless appliances 400 series
  • Efficient BLDC technology

Output

  • Performance output level 3/Intensive:
    Air output according to EN 61591.
    Sound power and sound pressure depending on built-in situation.
  • Air extraction:
    720 / 910 m³/h.
  • Power levels depend on the motorless appliances, see table on page XX.

Features

  • 3 electronically controlled power levels and one intensive mode.
  • Fan technology with highly efficient, brushless DC motor (BLDC).
  • Including sound insulation to minimise the noise level.
  • Stainless steel housing.
  • Pipe connection pieces on intake side: 1x NW 200 round.
  • Retaining bracket for installation on an outside wall enclosed.

Connection

  • Total connected load 180 W.
  • Connecting cable 1.8 m, pluggable.
  • Network cable 5 m.
