Gaggenau Expressive series combi-steam oven 60 x 45 cm door hinge: rightGS470120
GS470120
New
1 / 7Gaggenau Expressive series combi-steam oven 60 x 45 cm door hinge: rightGS470120
GS470120

EU-Datasheet
In a range from: A+++ to D
Find a local Dealer
Technical Overview
Dimensions (HxWxD)
456x594x532 mm
Display control
full touch display
Integrated Cleaning system
Hydrolytic
Steam technology
Added steam
Sensors
Temperature probe connection
Connection
with plug
Gaggenau Home Connect Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Highlights
Special Features
Seamless interface design with refined aesthetics, featuring a floating stainless steel ring and haptic feedback
Full surface grill with steam modes for consistent, flavourful cooking
The core temperature probe with a 3-point sensor for precise measurement and perfect cooking results. Available as an optional accessory for microwaves and steamers
Full-size side-hinged door with one-touch opening for easy, ergonomic access
Advanced cleaning program delivers pristine results, keeping the appliance spotless with minimal effort
Additional information
Handleless full glass door with electronic door opening.
Full touch display with stainless steel control ring.
Light and display response upon user detection.
Fixed inlet and outlet water connection
External steam generation
Automatic cleaning with perfect results, also for heavy soiling.
Hot air 30 °C to 230 °C can be combined with chosen humidity level of 0%, 30%, 60%, 80% or 100%
Sous-vide cooking with accurate temperature regulation
Full surface grill behind glass ceramic, combinable with circulated air up to 230 °C and steam
Automatic programmes and setting recommendations.
Net volume 50 litres.
Hot air + 100 % humidity.
Hot air + 80 % humidity. Hot air + 60 % humidity. Hot air + 30 % humidity. Hot air + 0 % humidity. Grill + circulated air. Grill level 1 + humidity. Grill level 2 + humidity. Sous-vide cooking. Low temperature cooking. Dough proving. Keeping warm. Defrosting. Regenerating.
200 programmes (automatic programmes and setting recommendations).
Option to save up to 30 favourites.
Cushioned side-opening door with 110 ° opening angle.
Electronic door opening.
Full touch display with control ring.
42 display languages available.
User detection, adjustable distance.
Info texts for additional information.
Animated quick guides to assist appliance operation.
Full surface grill 2 kW behind glass ceramic.
Hot air fan rotates in both directions for ideal heat distribution
Connection for core temperature probe (oven temperature probe usable).
Grill can be added briefly in hot air mode for additional browning.
Misting.
Steam removal.
Automatic boiling point detection.
Precise temperature control with display of the current temperature.
Timer functions: cooking time, cooking time end, count-up timer.
Long-term timer.
Programmable automatic door opening at cooking time end to avoid overcooking.
Optimum visibility of the food thanks to side lighting.
3 tray levels.
Remote control and monitoring.
Cooking time estimation when using the core temperature probe.
Door opening via voice assistant.
Child lock to prevent accidental switch on or operation of the appliance.
Electronic door lock to prevent unintentional opening of the appliance door.
Safety shut-off.
Thermally insulated door with triple glazing.
Cooled housing with temperature protection.
Hygienic stainless steel cooking interior.
Automatic cleaning. Automatic cleaning.
Automatic descaling for the steam generator.
Drying programme.
Automatic drying of the cavity at the end of the cooking process.
All removable parts and accessories dishwasher-safe, incl. stainer filter.

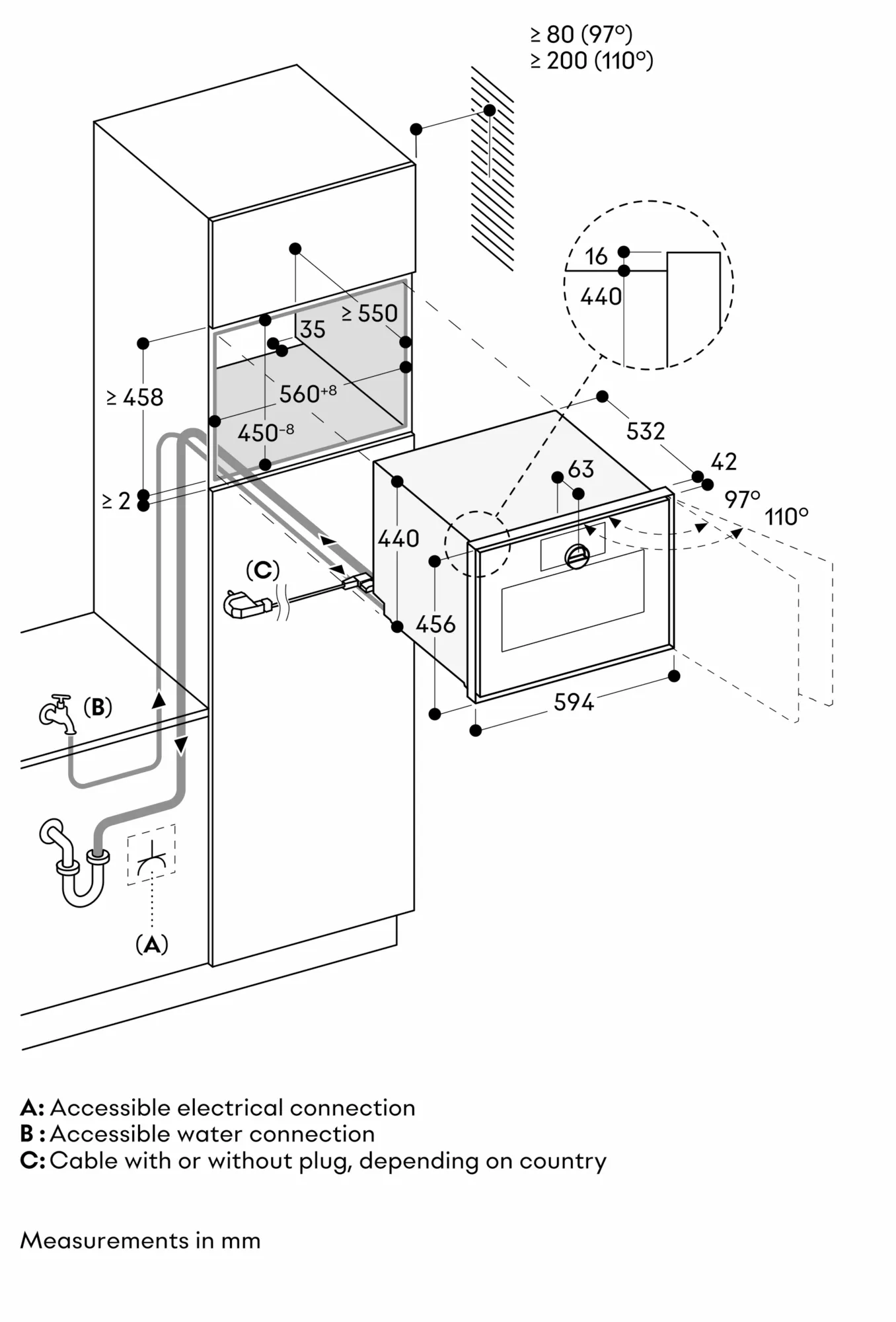

Plan the niche without back wall.
Door hinge not reversible.
No other electrical appliances should be installed above the GS.

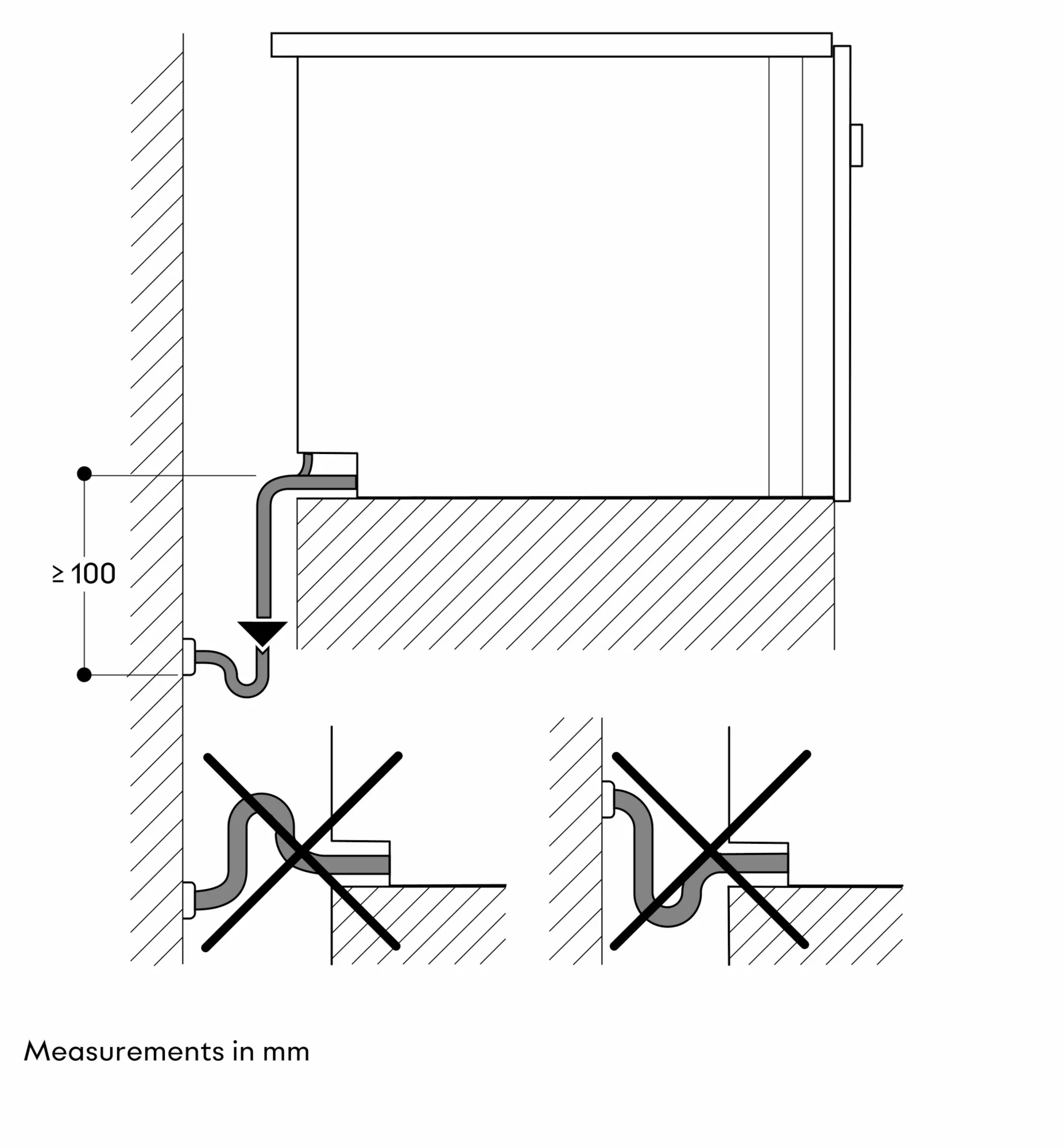

At no point may the outlet hose be positioned higher than the bottom edge of the appliance. The outlet hose must also be at least 100 mm lower than the appliance outlet (see drawing "drain connection").
Inlet and outlet hose can be extended once.
The outlet hose must not be longer than a maximum of 5 m.
The water connection for the inlet hose must always be accessible and not located directly behind the appliance.
The connection of the outlet hose to the siphon must not be directly behind the appliance and should be accessible.
Protrusion from appliance front to furniture cabinet 42 mm.
Consider the overhang when planning to open drawers next to the appliance.
When planning a corner solution, pay attention to the side-opening door and the minimum required distance to the wall.
Door opening angle appr. 110° (delivery status) can be reduced to appr. 97° if required.
The mains socket must be accessible and located outside the built-in niche.
Special accessories (order as spare part):
Part No. 17002490 Descaling tablets.
Energy efficiency class A at a range of energy efficiency classes from A+++ to D.
Total connected load 3.1 KW.
Only cold water connection.
To allow water detection, softened water must have a conductivity of > 200µS/cm.
Inlet hose 3.0 m with connection pipe thread ISO228-G 3/4'' (Ø 26.4 mm), extendable.
Outlet hose (Ø 25 mm) 3.0 m (HT-Hose), extendable.
Connection cable 1.75 m, pluggable.
