Glass user interface with surrounding aluminum frame.

Dimmable, neutral white LED light.

Energy-saving, low-noise fan

Performance and noise level, output level 3/Intensive:

Air output according to EN 61591.

Sound power level according to EN 60704-3.

Air extraction:

396 / 946m³/h.

57 / 76 dB (A) re 1 pW.

Air recirculation:

406 / 888m³/h.

64 / 78 dB (A) re 1 pW.

Three electronically controlled power levels and an intensive mode.

Perforated sheet metal filter, dishwasher-safe.

Neutral white LED light (3500 K).

Light colour in different white tones (2700 - 5000 Kelvin) can be adjusted via Home Connect.

Illuminance 461 lx continuously dimmable.

Lamp output 2 x 3 W.

Fan technology with highly efficient, brushless DC motor.

Interval ventilation via Gaggenau Home Connect.

Grease filter and odour filter saturation indicator via Gaggenau Home Connect.

Cooktop-based ventilation control (with suitable cooktop).

Remote control and monitoring.

Software updates.

Remote diagnostics.

Energy efficiency class A+ at a range of energy efficiency classes from A+++ to D.

Energy consumption 34.5 kWh/year.

Ventilation efficiency class A.

Illumination efficiency class A.

Grease filter efficiency class B.

Sound level min. 43 dB / max. 57 dB normal mode.

The equivalent ducting length to ensure good performance is Lmax 26 m.

Please refer to the "General planning notes" for the calculation of the equivalent ducting length.

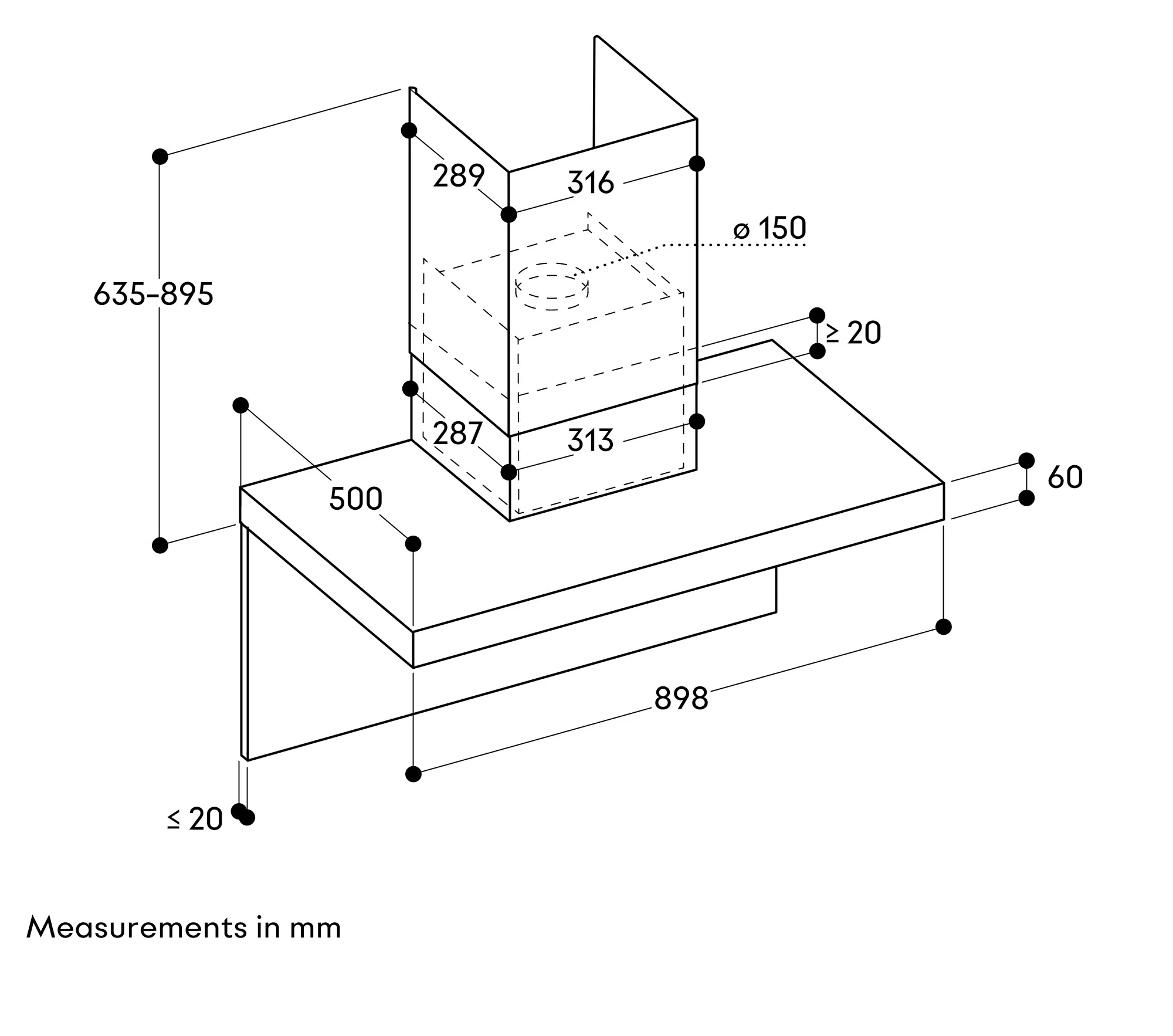

The package includes the two-part chimney. Total appliance height from 635 mm to 895 mm.

Clearance above gas appliances min. 65 cm(more than total load gas 12 kW min. 70 cm).

Clearance above electric appliances min. 55 cm.

For air recirculation, an air recirculation module is required.

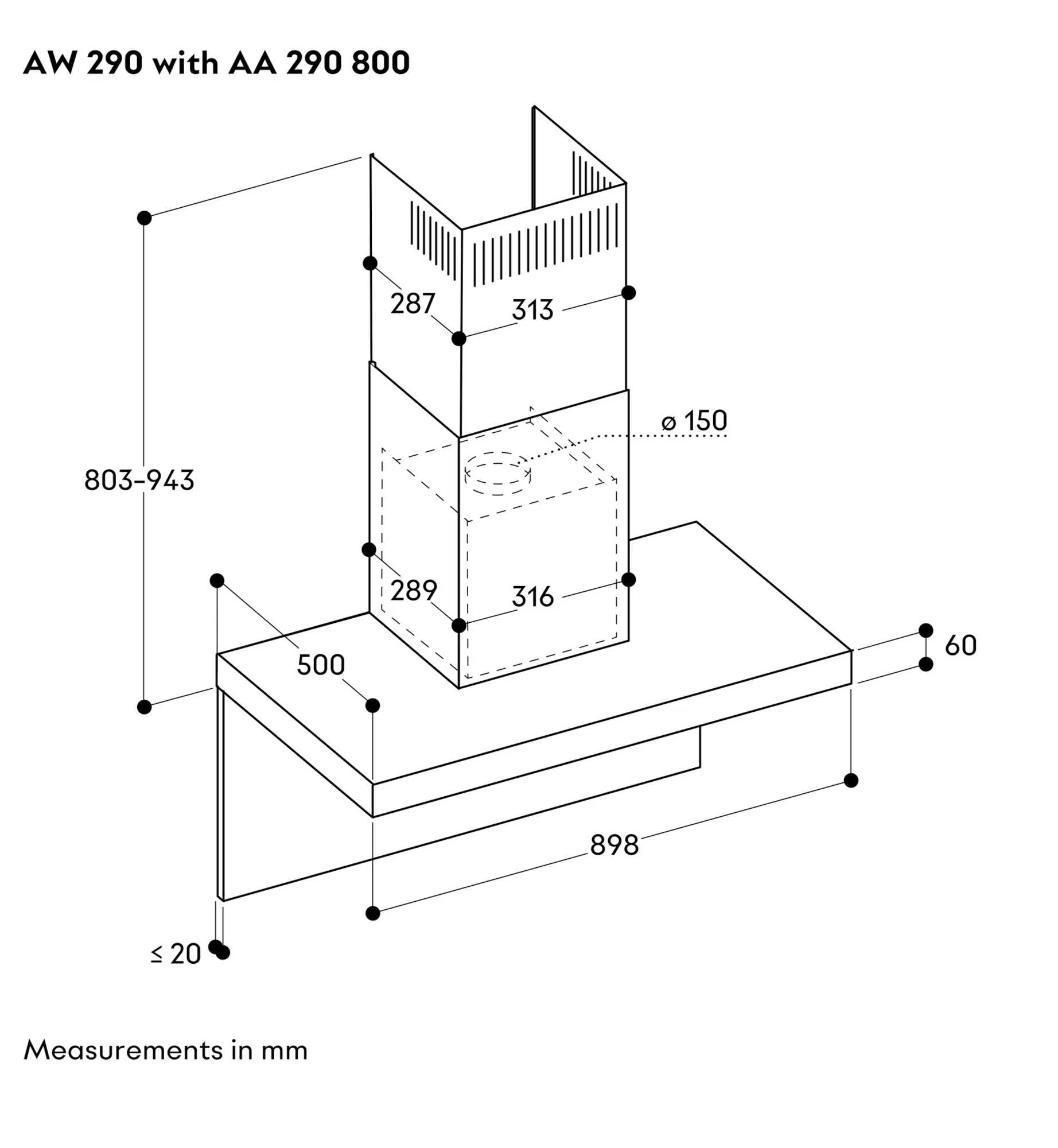

Air recirculation module with 1 odour filter and special recirculation chimney. Total appliance height from 803 mm to 1080 mm.

Easy planning and installation of the air recirculation module in the hood.

Easy access to odour filter from below.

When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood’s power supply line needs to feature a suitable safety switch.

Total connected load 240 W.
