RB289203

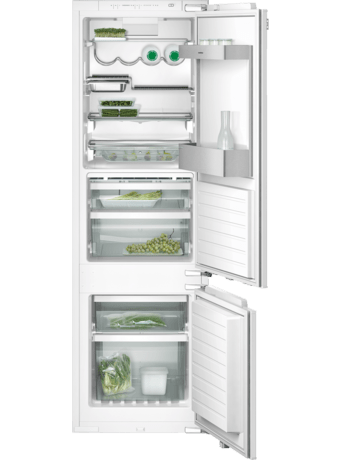

Vario fridge-freezer combination 200 series

RB 289 203

with fresh cooling close to 0 °C
fully integrated
Niche width 56 cm, Niche height 177.5 cm

Downloads

Zoom

Main facts

  • Unique usage concept:
    - Maximum usage of interior: stepped shelf,
    full depth shelves as well as integrated
    fixtures for various containers
    - Easy access: fully extendable shelves
    and drawers
    - Optimal overview: intelligent lighting concept,
    use of glass and transparent materials
    - Efficient preparation, cooking and storage
    with Gaggenau appliances: integration of
    Gastronorm inserts
  • Enlarged interior with 245 litre net volume through compressor relocation
  • Four climate zones incl. two fresh cooling drawers close to 0 °C
  • Cushioned door closing system allowing a soft and controlled door closure
  • Smooth running fully extendable telescopic pull-out racks and a cushioned closing system allow a soft and controlled closure of the drawers

Handling

  • Electronic temperature control with temperature display.
  • Touch keys.

Technical Features

  • Cushioned door closing system from 20° door opening angle, integrated in door hinge.
  • Open-door and malfunction alarm.

Cooling

  • Net volume 128 litres.
  • Fast cooling.
  • Automatic defrosting with defrost water evaporation.
  • Temperature adjustable from +2 °C to +8 °C.
  • 3 safety glass shelves, 2 of which are fully extendable and 1 height adjustable.
  • Wine and champagne rack for 4 bottles, can be completely folded away.
  • Fixture for storing glass tray.
  • 1 large door rack with aluminium profile for bottles with flexible bottle holder.
  • 1 door rack with aluminium profile.
  • Bright interior lighting with integrated glare-free side light elements.
  • Stepped shelf in aluminium for optimum use of interior and for storing GN inserts.
    Possible combinations:
    1 x 1/3 GN
    2 x 1/3 GN
    3 x 1/3 GN
    1 x 2/3 GN
    1 x 2/3 GN and 1 x 1/3 GN

Fresh cooling close to 0 °C

  • 1 fully extendable fresh cooling drawer close to 0 °C.
  • Ideal for meat, fish and poultry.
  • 1 fully extendable fresh cooling drawer close to 0 °C, optimized humidity.
  • Ideal for fruit and vegetables.
  • Net volume 56 litres.
  • Activated charcoal air filter.

Freezing

  • Net volume 61 litres.
  • No-frost technology with fast freezing.
  • Temperature adjustable from -16 °C to -24 °C.
  • 4-star freezer compartment.
  • Freezing capacity 12 kg/24 h.
  • Storage time after a malfunction 16 h.
  • 2 freezer drawers, 1 of which extra large.

Consumption data

  • Energy efficiency class A++ at a range of energy efficiency classes from A+++ to D.
  • Energy consumption 236 kwh/year.
  • Noise level 41 dB (re 1 pW).

Connection

  • Total connected load 0.12 kW.
  • Connecting cable 2.3 m with plug.
