AW250192

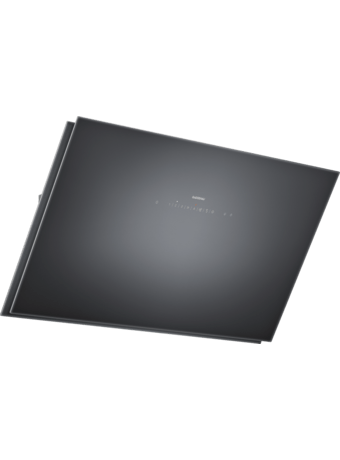

Wall-mounted hood 200 series

AW 250 192

Full glass front in Gaggenau Anthracite
Width 90 cm
Air extraction / Air recirculation

Υποστήριξη

Zoom

Περιγραφή προϊόντος

  • Angled vapour screen provides particularly generous free space above the cooktop
  • Filter cover with easy to clean glass front
  • Glass cover fitting to oven 200 series
  • Energy-saving, low-noise fan
  • Vapours can be caught efficiently thanks to two suction areas on the underside and front
  • The glass panel can be extended forward to increase the area for catching vapours during particularly intensive cooking
  • Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapours
  • Dimmable ambient lighting allows light to be adjusted individually
  • Air extraction or air recirculation system

Output

  • Performance and noise level, output level 3/Intensive:
    Air output according to EN 61591.
    Sound power level according to EN 60704-3.
    Sound pressure level according to EN 60704-2-13.
    Odour reduction for air recirculation in accordance with EN 61591.
  • Air extraction:
    530 / 960 m³/h.
    57 / 70 dB (A) re 1 pW.
    42 / 55 dB (A) re 20 μPa.
  • Air recirculation:
    460 / 670 m³/h.
    68 / 78 dB (A) re 1 pW.
    54 / 64 dB (A) re 20 μPa.
  • Odour reduction air recirculation 95%.

Features

  • 3 electronically controlled power levels and 1 intensive mode.
  • Automatic function with sensor-controlled run-on function.
  • Grease filter and activated charcoal filter saturation indicator.
  • Interval ventilation, 6 min.
  • Cooktop-based ventilation control (with suitable cooktop).
  • Metal grease filter, dishwasher-safe.
  • Glass filter cover in Gaggenau Anthracite.
  • 2 activated charcoal filter fitted in appliance ex factory.
  • Neutral white LED light (3500 K), continuously dimmable.
  • Lamp output 2 x 3 W.
  • Illuminance 460 lx.
  • Indirect LED light (3.000 K), dimmable.
  • Fan technology with highly efficient, brushless DC motor (BLDC).
  • Integrated sound insulation for quiet operation.
  • Easy to clean inner frame.
  • Easy mounting system for simple installation and alignment.
  • Home network integration for digital services (Home Connect) wireless via WiFi.
  • The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

Consumption data

  • Energy efficiency class A+ at a range of energy efficiency classes from A++ to E.
  • Energy consumption 31.4 kwh/year.
  • Ventilation efficiency class A.
  • Ilumination efficiency class A.
  • Grease filter efficiency class B.
  • Sound level min. 42 dB / max. 57 dB normal mode.

Connection

  • Total connected load 270 W.
  • Connecting cable 1.3 m with plug.
  • Power consumption standby/display off 0.5 W.
  • Power consumption standby/network 2.0 W.
  • Please check the user manual for how to switch off the WiFi module.
